QS5 Ultrasonic Cleaning Bath

£1,264.00

In stock

You may be able to spread the cost with PayPal Credit. Choose PayPal in Express Checkout to check your eligibility.

Shipping

Order before 1pm for same day shipment! Shipped via UPS Standard. UK mainland delivery expected next day. See Shipping for more details. Same day shipment available Monday-Friday.

Description

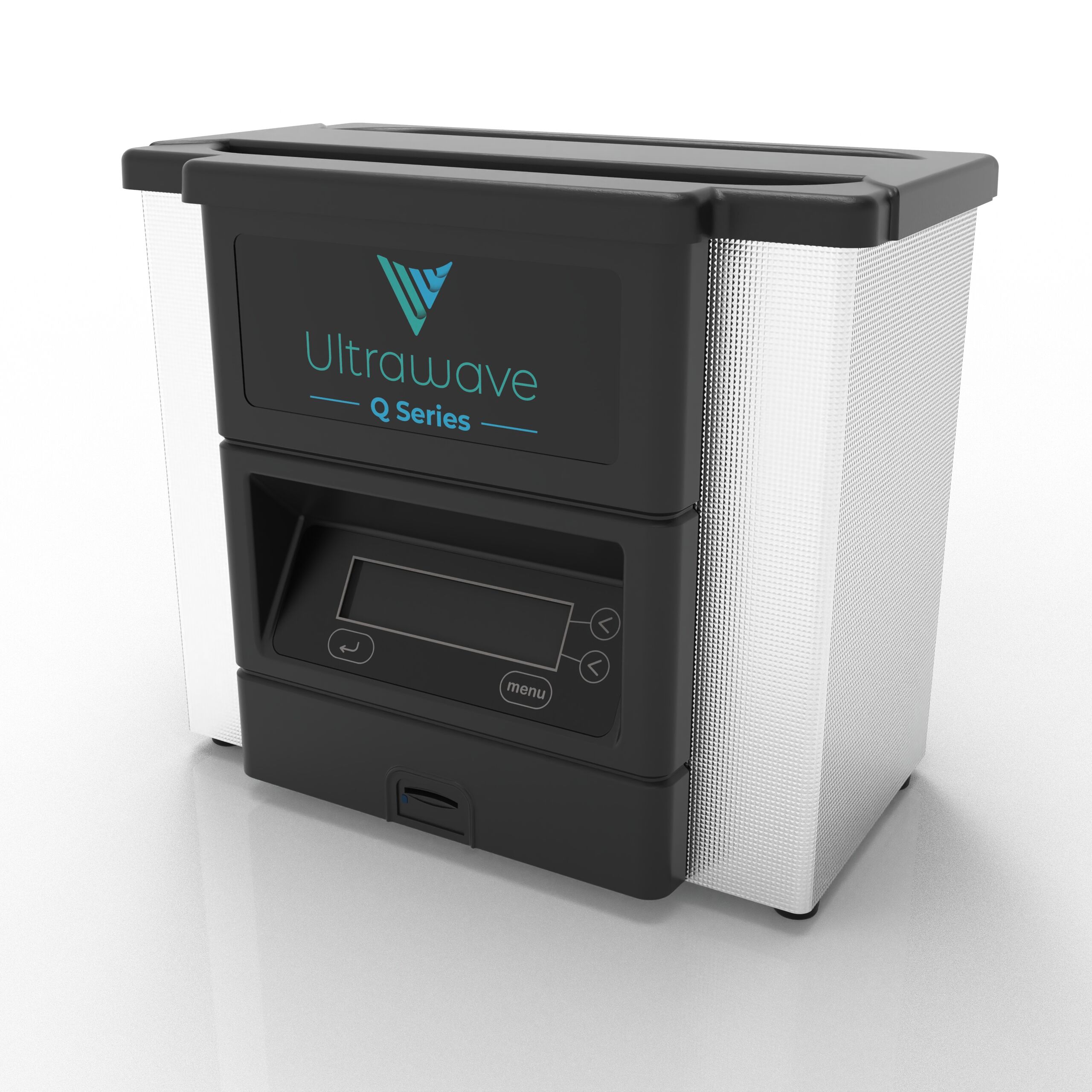

The QS5 ultrasonic cleaning bath offers repeatable and traceable cleaning performance for a wide range of industries. Incorporating Frequency Leap technology, the Q-Series combines excellent ultrasonic cleaning efficiency with ease of operation.

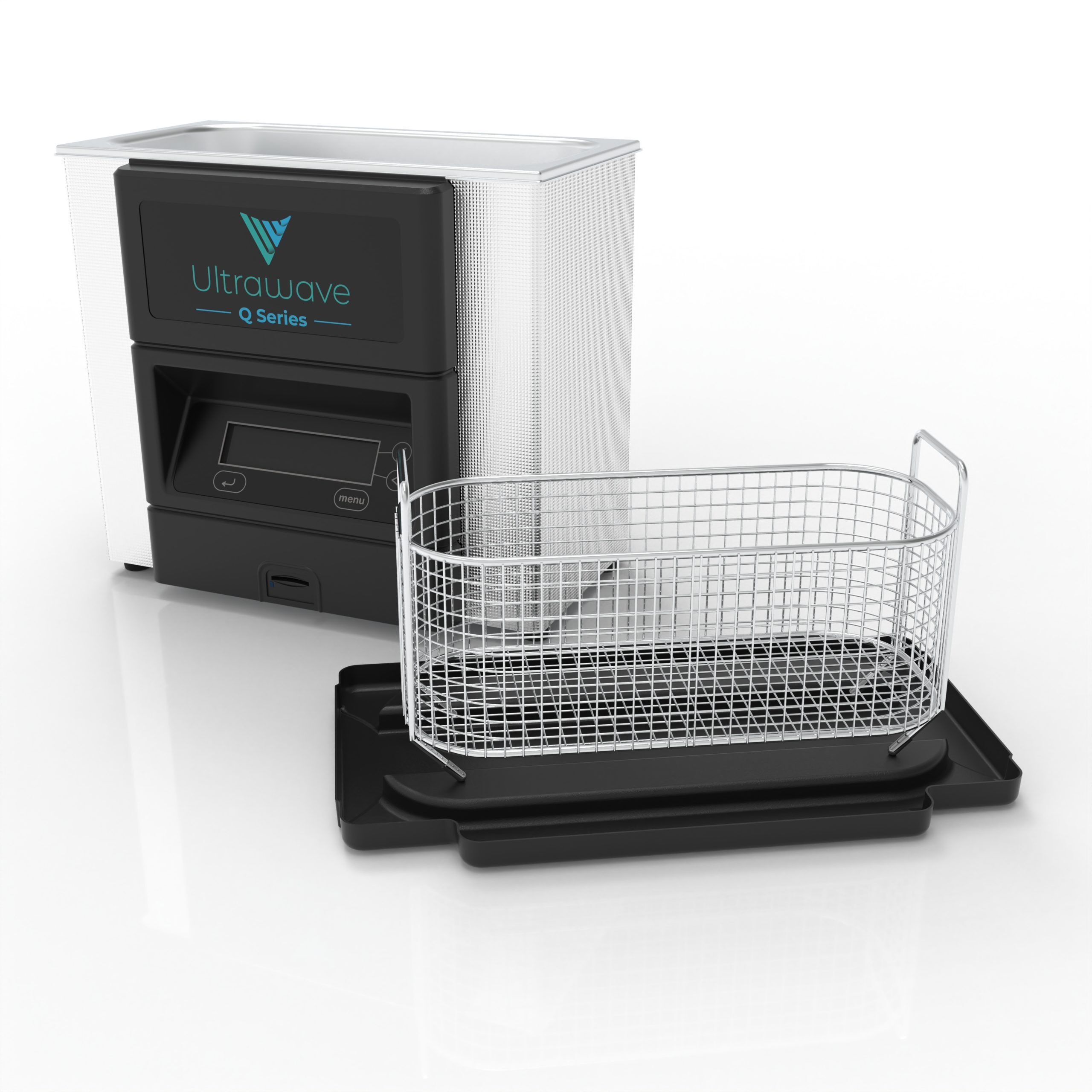

The QS5 is a heated ultrasonic cleaning bath with a easily operated digital time and temperature control interface. It has a 4.5 litre working capacity tank and is supplied complete with a stainless steel basket and a plastic lid that also doubles as a drip tray.

It offers full cleaning cycle traceability, storing all cleaning cycle information onto an SD card that can be removed and transferred to a computer by using the provided software. All data can then be stored or printed for compliance purposes.

For the best results use an Ultrawave cleaning detergent that has been specially formulated for your application.



Q-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745



Additional information

Weight 7.1 kg

Product Specifications



Overall Dimensions
340 x 325 x 265mm (W x D x H)
Internal Tank Dimensions
300 x 150 x 150mm (W x D x H)
Internal Basket Dimensions
265 x 115 x 110mm (W x D x H)
Maximum Capacity
Working Capacity
5 Litres
4.5 Litres
Construction
304 stainless steel tank
Control
Digital control
Temperature (Ambient to 70°C)
Time (0 to 99 minutes)
Operating Features
Degas mode
Digital traceability
Drain valve
Energy saving mode
Fluid level protection
Frequency Leap Technology
Heated
Power adjust
Ultrasonic Power
100W
Operating Frequency
32 to 38kHz
Heating Power
150W
Mains Connection
230VAC
Warranty
3 year warranty



Compare the Q-Series Range

Q-Series comparison table

Compare the products from the Q-Series range
Q-Series
ModelQS5QS10QS12QS13QS18QS25
Overall Dimensions340 x 325 x 265mm545 x 315 x 265mm345 x 435 x 365mm375 x 490 x 265mm375 x 490 x 365mm550 x 490 x 365mm
Tank Dimensions300 x 150 x 150mm505 x 140 x 150mm300 x 240 x 200mm330 x 300 x 150mm330 x 300 x 200mm505 x 300 x 200mm
Internal Basket Dimensions265 x 115 x 100mm465 x 100 x 110mm265 x 210 x 160mm295 x 265 x 110mm295 x 265 x 160mm465 x 265 x 160mm
Maximum Capacity5 Litres10.5 Litres14 Litres13 Litres18.5 Litres28 Litres
Working Capacity4.5 Litres9.5 Litres12.5 Litres12.5 Litres17.5 Litres25 Litres
Digital ControlYYYYYY
Temperature ControlUp to 70°CUp to 70°CUp to 70°CUp to 70°CUp to 70°CUp to 70°C
Timer0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes
Degas ModeYYYYYY
Digital TraceabilityYYYYYY
Drain ValveYYYYYY
Energy Saving ModeYYYYYY
Fluid Level ProtectionYYYYYY
Frequency Leap TechnologyYYYYYY
Power AdjustYYYYYY
