Description

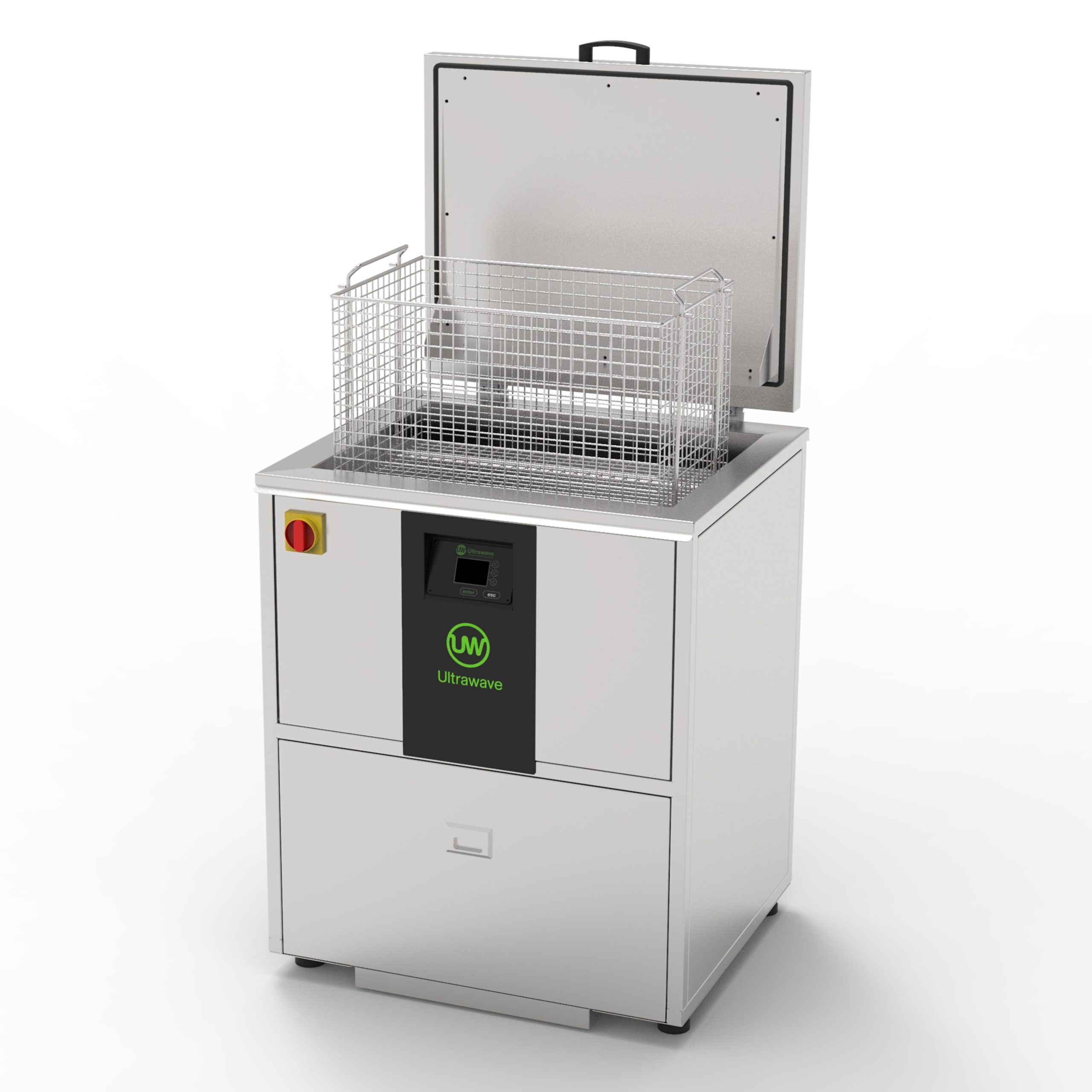

Ultrawave’s Neon 125 enhances your ultrasonic cleaning activities with Frequency Leap Technology, delivering outstanding performance with cost saving benefits. All wetted parts of the tank are 316 stainless steel, maximising chemical compatibility and system longevity.

Incorporating a sinusoidal overflow-weir, jetting system, stainless steel pump and filtration system in one small footprint, the recirculated fluid reduces contaminants within the tank, minimising drag through. Running costs and waste are reduced, using less water and less detergent than standard ultrasonic cleaners.

The Neon 125 can be used as a stand alone, individual tank whilst its clever modular design also allows easy retrofitting of additional wash, rinse and drying stages as specified by your requirements. This new Ultrasonic Cleaning System offers the highest quality ultrasonic cleaning, with reduced running costs from one small footprint.

Please be aware that this particular model has a number of variants due to the different applications it can be suited for. It therefore has a reasonably wide level of configurability and its price can only be estimated prior to a site survey.

If you would like some more guidance we would love to help, just either talk to us through the chat-box on your screen or give us a call and we will be able to give you some quick and concise advice.



Additional information

Weight 188.5 kg

Product Specifications



Overall Dimensions
845 x 750 x 1005mm (W x D x H)
Internal Tank Dimensions
700 x 550 x 450mm
Working Tank Dimensions
700 x 450 x 400mm
Basket Dimensions
625 x 405 x 365mm
Working Capacity
125 Litres
Construction
Industrial Grade 2mm stainless steel 316L tank
Control
Digital control
Graphical User Interface with split level program security
Temperature (Ambient to 80°C)
Time (0 to 80 minutes)
Operating Features
316 Stainless steel lockable drain valve
Fluid level protection
Frequency Leap Technology
Heated
Industrial grade tank
Multi-stage modular compatibility (Rinse and Dryer options available)
Recirculation system
Safety thermal cut off
Support Struts for basket draining
Tri-program temperature control
Ultrasonic Power
1200W
Operating Frequency
32 to 38kHz
Heating Power
4000W
Mains Connection
230Vac, 32A plug
Warranty
1 year standard
Options available for 3Year or 5year extended warranty as part of the Planned Preventative Maintenance Service (PPMS)

Compare the NEON-Series

Neon-Series comparison table

Neon Series
ModelNeon 35Neon 60Neon 90Neon 125
Overall Dimensions685 x 600 x 905mm685 x 700 x 905mm765 x 800 x 905mm845 x 750 x 1005mm
Tank Dimensions500 x 400 x 280mm500 x 500 x 350mm600 x 600 x 350mm700 x 550 x 450mm
Working Tank Dimensions500 x 300 x 230mm500 x 400 x 300mm600 x 500 x 300mm700 x 450 x 400mm
Basket Dimensions425 x 255 x 195mm425 x 355 x 265mm525 x 455 x 265mm625 x 405 x 365mm
Capacity35 Litres60 Litres90 Litres125 Litres
Hinged LidYYYY
HeatedUp to 80°CUp to 80°CUp to 80°CUp to 80°C
TimerUp to 80 minutesUp to 80 minutesUp to 80 minutesUp to 80 minutes
Fluid Level ProtectionYYYY
Frequency Leap TechnologyYYYY
Multi-Stage CapabilityYYYY
Recirculation and FiltrationYYYY
Integrated Basket DrainingYYYY
