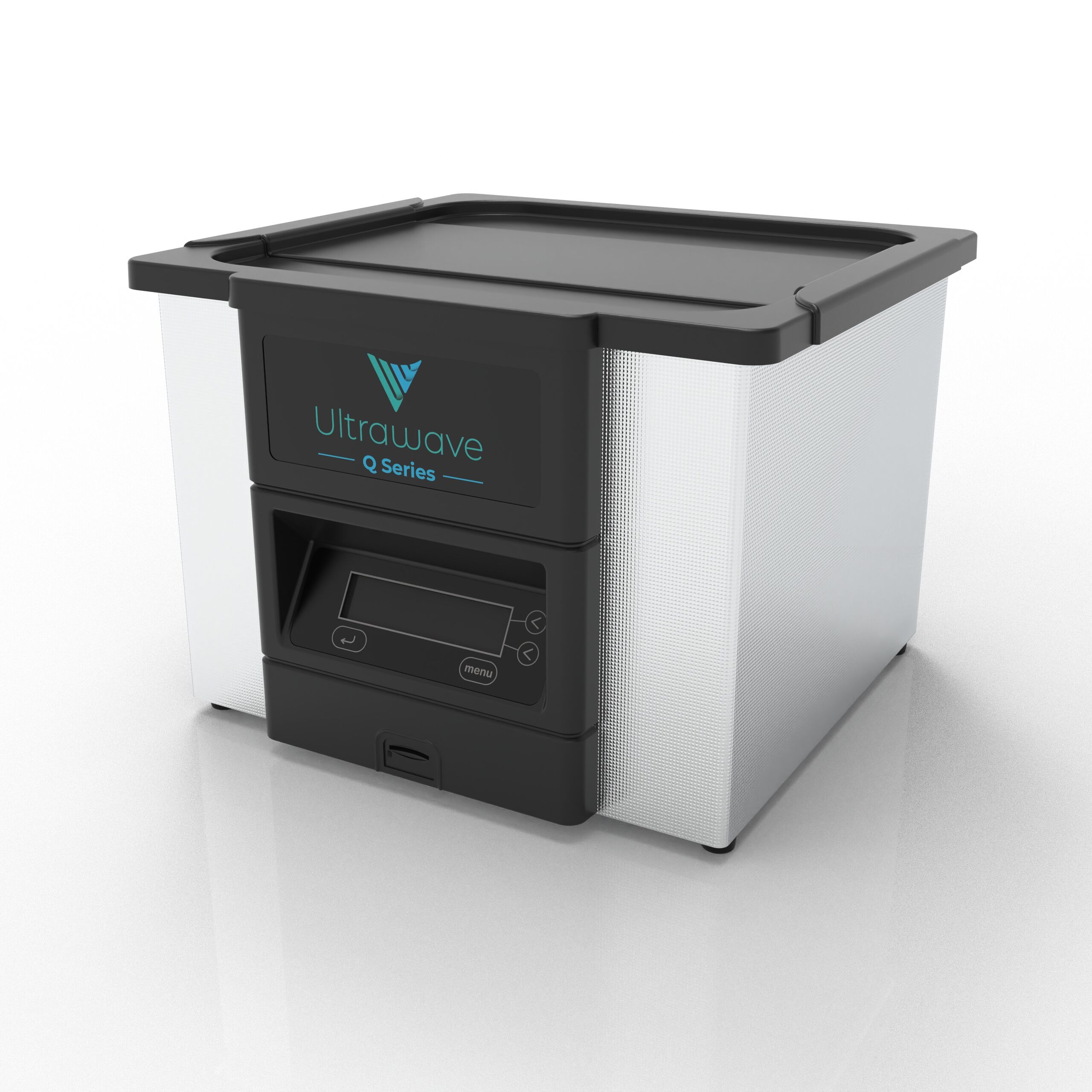

The QS13 ultrasonic cleaning bath offers heated, repeatable and traceable cleaning performance for a wide range of industries. Incorporating Frequency Leap technology, the Q-Series combines excellent ultrasonic cleaning efficiency with ease of operation. The QS13 has been designed with deeper components in mind to offer superior cleaning performance.

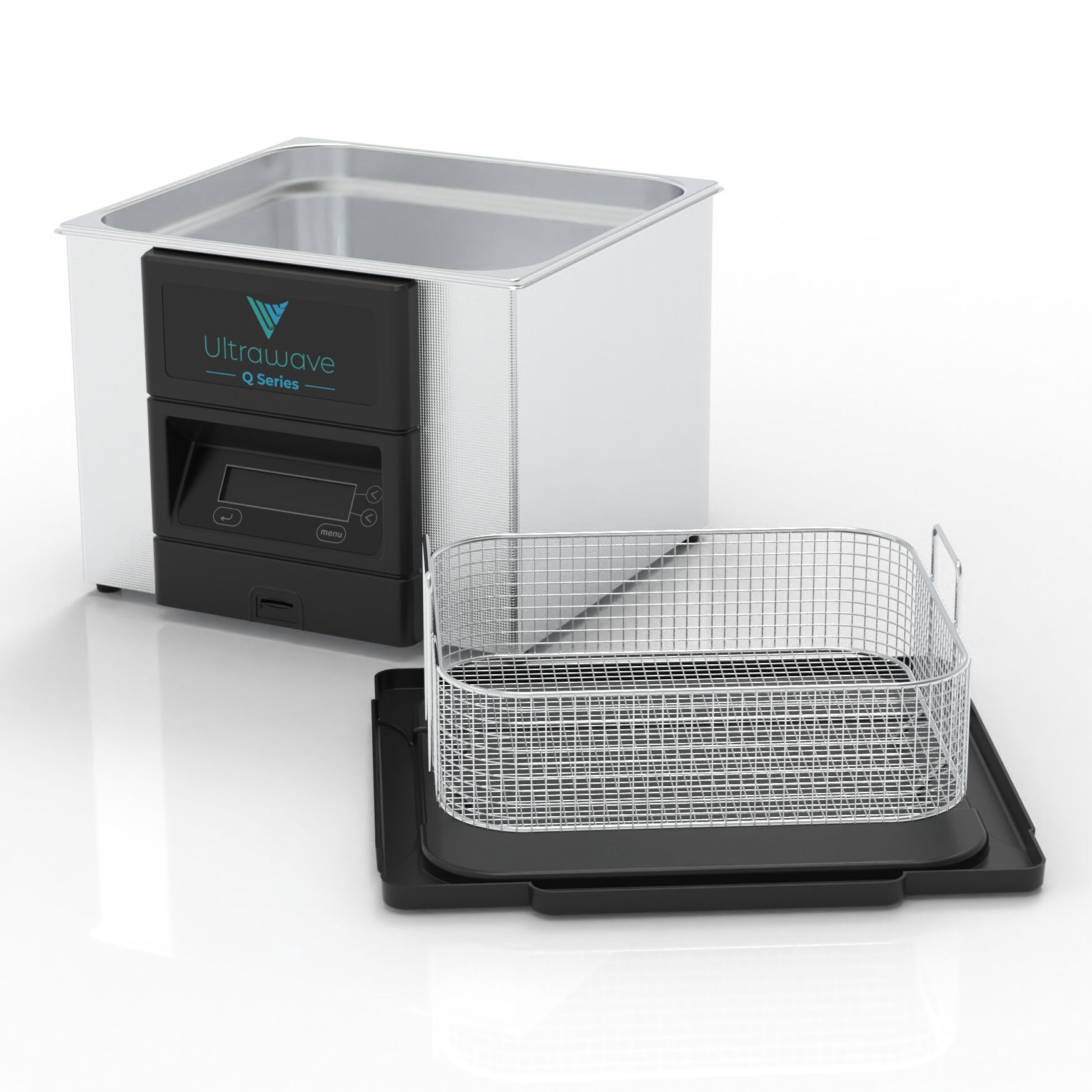

The QS13 is easily operated digital time and temperature control interface, with a 12.5 litre working capacity tank and is supplied complete with a stainless steel basket and a plastic lid which also doubles as a drip tray.

It offers full cleaning cycle traceability by storing all cleaning cycle information onto an SD card that can be removed and transferred to a computer by using the provided software. All data can then be stored or printed for compliance and regulation obligations.

For the best results use an Ultrawave cleaning detergent that has been specially formulated for your application.


Q-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745

Additional information

Weight 10.8 kg

Product Specifications


Overall Dimensions
375 x 490 x 265mm (W x D x H)
Internal Tank Dimensions
330 x 300 x 150mm (W x D x H)
Internal Basket Dimensions
295 x 265 x 110mm (W x D x H)
Maximum Capacity
Working Capacity
13 Litres
12.5 Litres
304 stainless steel tank
Digital control
Temperature (Ambient to 70°)
Time (0 to 99 minutes)
Operating Features
Degas mode
Digital traceability
Drain valve
Energy saving mode
Fluid level protection
Frequency Leap Technology
Power adjust
Ultrasonic Power
Operating Frequency
32 to 38kHz
Heating Power
Mains Connection
1 Year as standard – extend to 3 Years if registered online with us (within 30days of purchase)

Compare the Q-Series Range

Q-Series comparison table

Compare the products from the Q-Series range
Overall Dimensions340 x 325 x 265mm545 x 315 x 265mm345 x 435 x 365mm375 x 490 x 265mm375 x 490 x 365mm550 x 490 x 365mm
Tank Dimensions300 x 150 x 150mm505 x 140 x 150mm300 x 240 x 200mm330 x 300 x 150mm330 x 300 x 200mm505 x 300 x 200mm
Internal Basket Dimensions265 x 115 x 100mm465 x 100 x 110mm265 x 210 x 160mm295 x 265 x 110mm295 x 265 x 160mm465 x 265 x 160mm
Maximum Capacity5 Litres10.5 Litres14 Litres13 Litres18.5 Litres28 Litres
Working Capacity4.5 Litres9.5 Litres12.5 Litres12.5 Litres17.5 Litres25 Litres
Digital ControlYYYYYY
Temperature ControlUp to 70°CUp to 70°CUp to 70°CUp to 70°CUp to 70°CUp to 70°C
Timer0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes
Degas ModeYYYYYY
Digital TraceabilityYYYYYY
Drain ValveYYYYYY
Energy Saving ModeYYYYYY
Fluid Level ProtectionYYYYYY
Frequency Leap TechnologyYYYYYY
Power AdjustYYYYYY
