Description

Ultrawave’s Qi-Series combines the highest quality design with advanced Frequency Leap technology for excellent ultrasonic cleaning performance. Designed to be used in a wide range of industries.

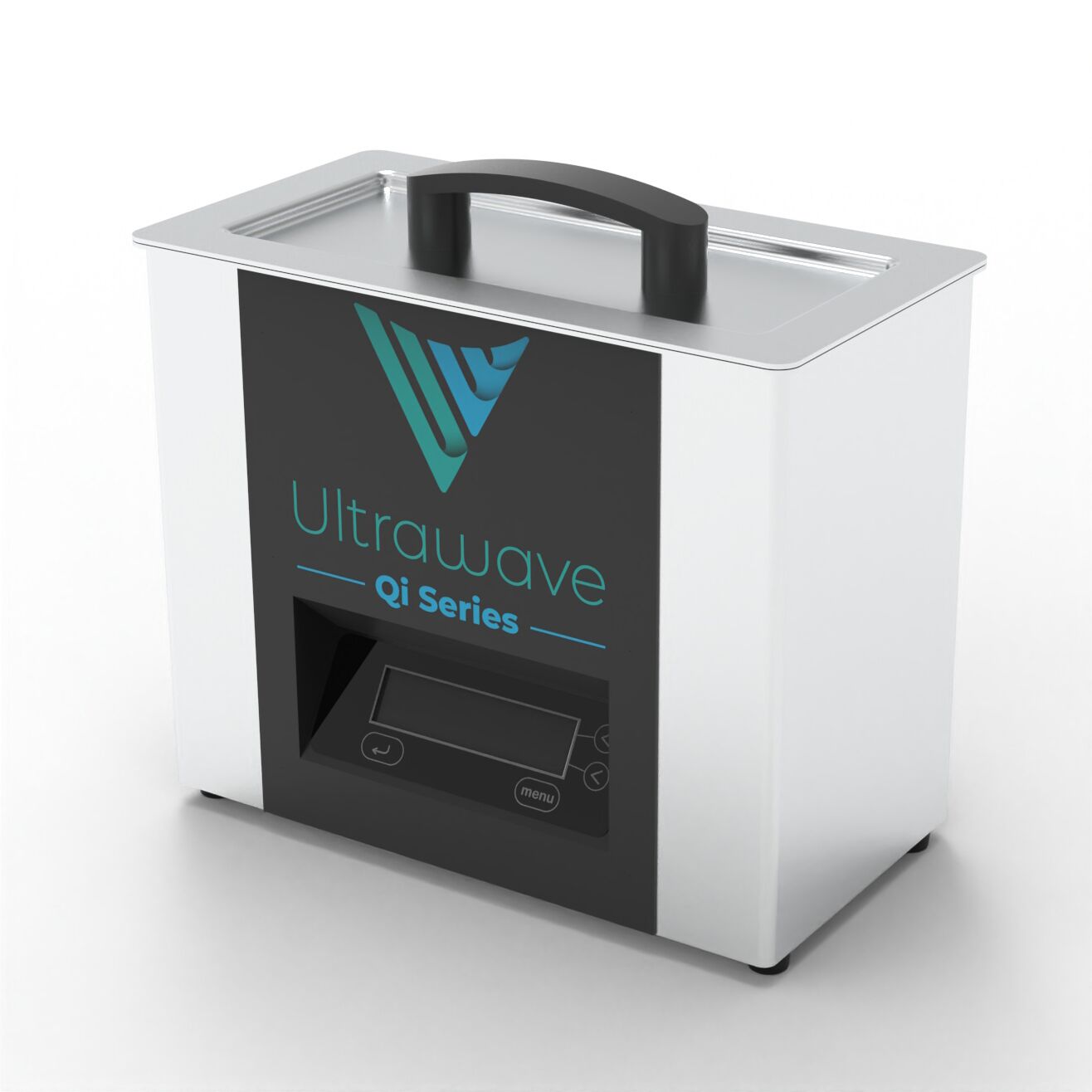

The Qi-100 is a 5 litre heated ultrasonic cleaner, built with a 2mm thick industrial 316L stainless steel tank for extra durability. Incorporating a digital control panel for easy and accurate processing. the Qi-Series is effective and reliable, giving you outstanding cleaning results time after time.

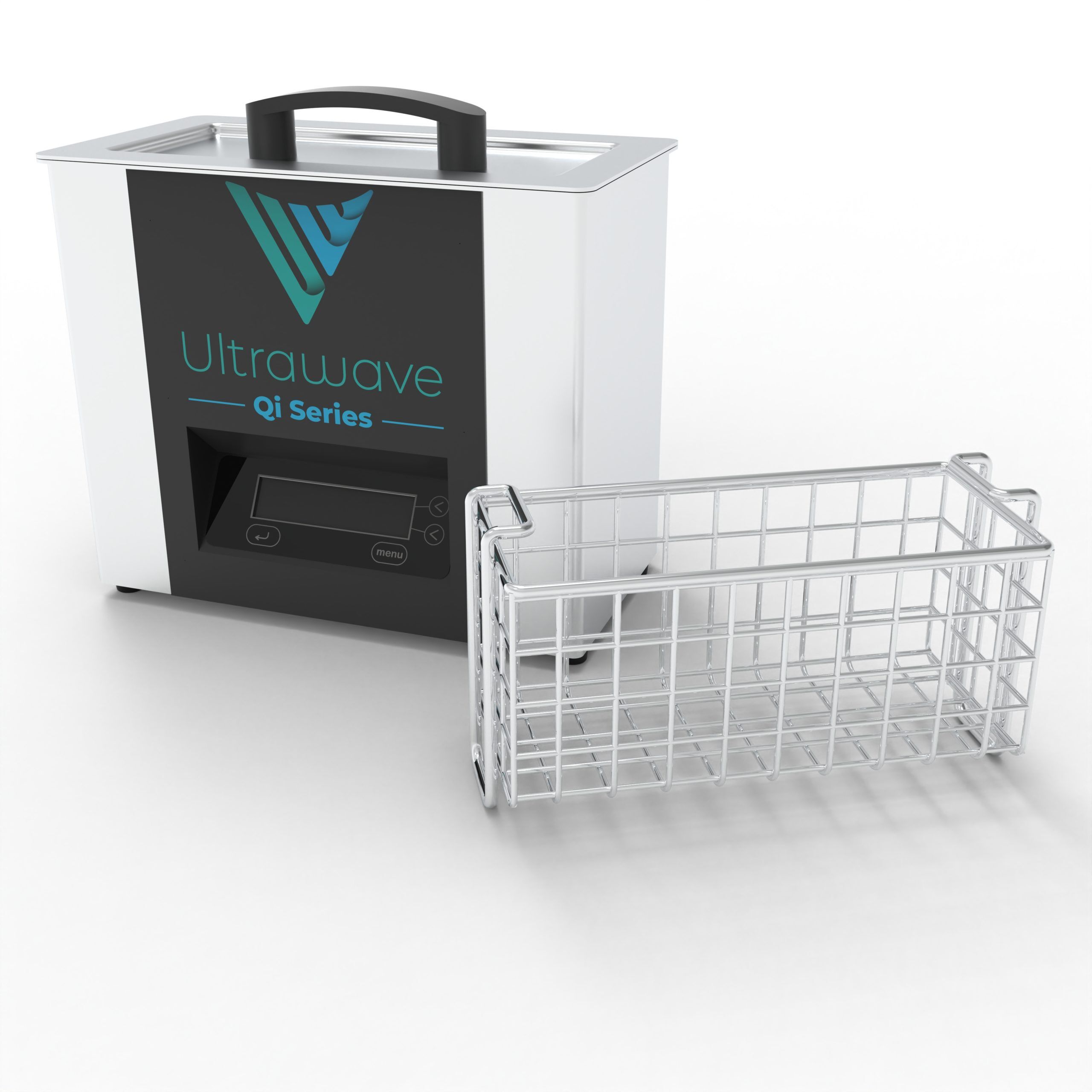

The Qi-100 is supplied complete with a stainless steel lid and basket.

For the best results, use an Ultrawave Ultraclean detergent specially formulated for ultrasonic cleaning.





Additional information

Weight 10 kg

Product Specifications

Overall Dimensions
375 x 300 x 310mm (W x D x H)
Internal Tank Dimensions
275 x 125 x 150mm
Basket Dimensions
250 x 110 x 75mm (Angled Basket handles reduce width by 25mm on each end)
Capacity
5 Litres
Construction
316 stainless steel tank
Control
Digital control
Temperature (Ambient to 80°)
Time (0 to 99 minutes or infinity mode)
Operating Features
Degas mode
Energy saving mode
Fluid level protection
Frequency Leap Technology
Heated
Industrial grade tank
Power adjust
Stainless steel lockable drain valve
Ultrasonic Power
100W
Operating Frequency
32 to 38kHz
Heating Power
300W
Required Services
13 Amp, standard 3 pin socket
Warranty
3 year warranty

Compare the Qi-Series

Qi-Series comparison table

Qi-SeriesUltrawave Ultrasonic QI Industrial Cleaner
ModelQi-100Qi-200Qi-300Qi-400Qi-500
Overall Dimensions375 x 300 x 310mm375 x 390 x 420mm400 x 460 x 420mm520 x 320 x 370mm535 x 340 x 370mm
Tank Dimensions275 x 125 x 150mm275 x 215 x 200mm305 x 275 x 200mm485 x 275 x 220mm500 x 300 x 240mm
Basket Dimensions250 x 110 x 75mm245 x 195 x 125mm275 x 250 x 125mm455 x 250 x 140mm480 x 280 x 170mm
Capacity5 Litres12 Litres17 Litres30 Litres36 Litres
Digital ControlYYYYY
Temperature ControlUp to 80°CUp to 80°CUp to 80°CUp to 80°CUp to 80°C
Timer0 to 99 Minutes & Infinity Mode0 to 99 Minutes & Infinity Mode0 to 99 Minutes & Infinity Mode0 to 99 Minutes & Infinity Mode0 to 99 Minutes & Infinity Mode
Industrial Grade TankYYYYY
Degas ModeYYYYY
Drain ValveYYYYY
Energy Saving ModeYYYYY
Fluid Level ProtectionYYYYY
Frequency Leap TechnologyYYYYY
Power AdjustYYYYY
