Ultrawave’s Qi-Series combines the highest quality design with advanced Frequency Leap technology for excellent ultrasonic cleaning performance. Designed to be used in a wide range of industries.

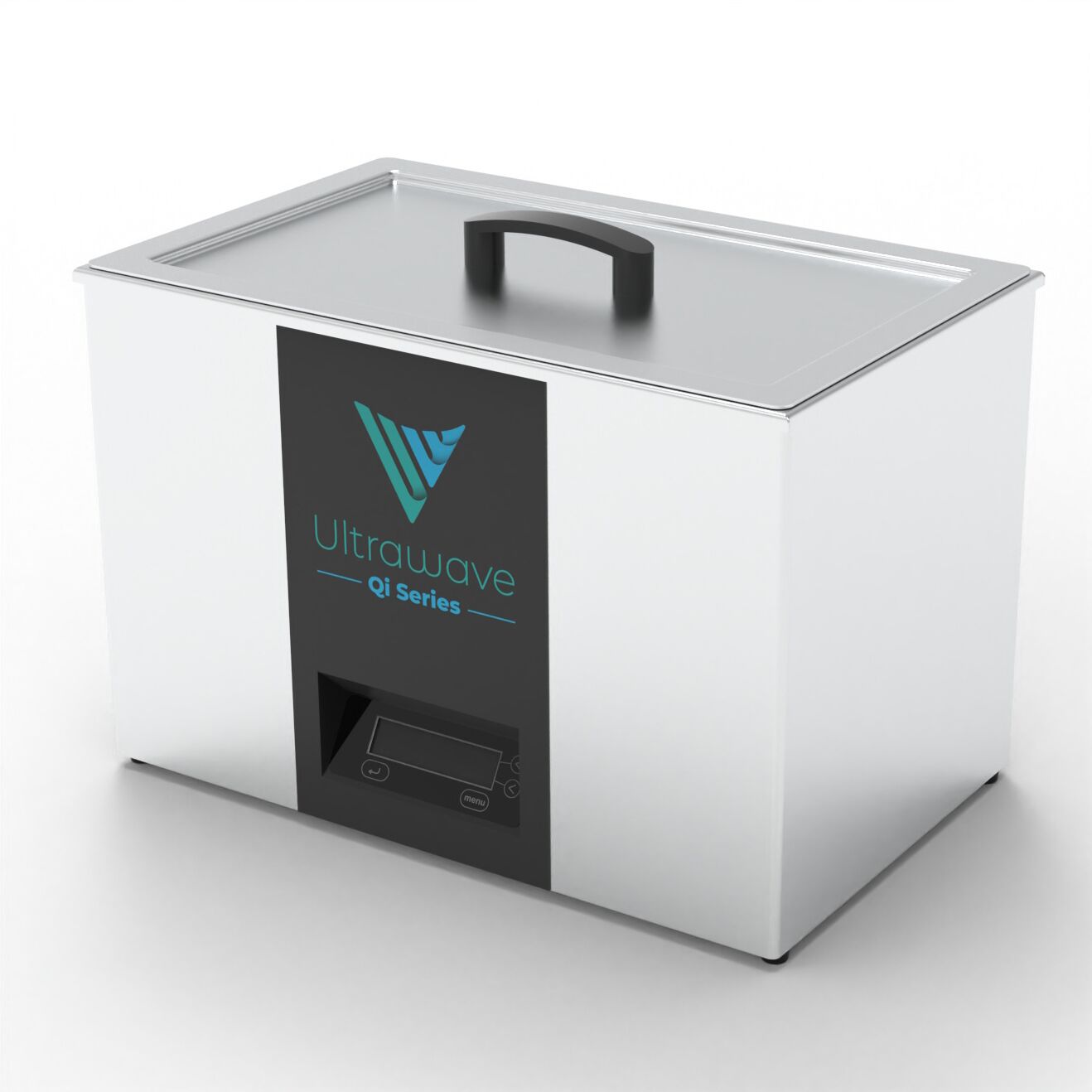

The Qi-500 is a 36 litre heated ultrasonic cleaner, built with a 2mm thick industrial 316L stainless steel tank for extra durability. Incorporating a digital control panel for easy and accurate processing. the Qi-Series is effective and reliable, giving you outstanding cleaning results time after time.

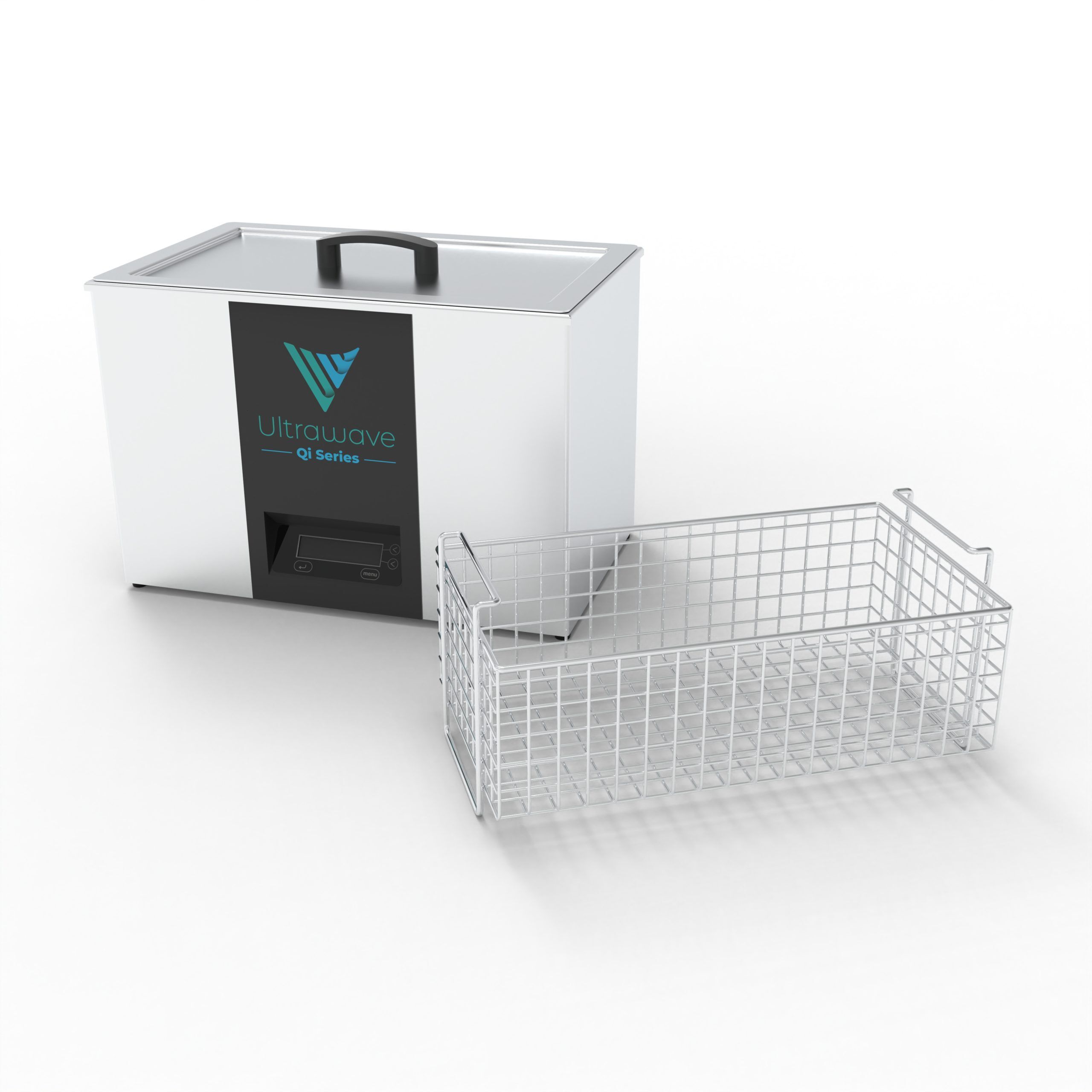

The Qi-500 is supplied complete with a stainless steel lid and basket.

For the best results, use an Ultrawave Ultraclean detergent specially formulated for ultrasonic cleaning.


Qi-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745.


Additional information

Weight 28 kg

Product Specifications


Overall Dimensions
540mm x 400mm x 395mm (W x D x H)
Internal Tank Dimensions
500mm x 300mm x 240mm (W x D x H)
Internal Basket Dimensions
475mm x 275mm x 185mm (W x D x H)
Maximum Capacity
Working Capacity
36 Litres
32 Litres
316 stainless steel tank
Digital control
Temperature (Ambient to 80°)
Time (0 to 99 minutes or continuous)
Operating Features
Degas mode
Energy saving mode
Fluid level protection
Frequency Leap Technology
Industrial grade tank
Power adjust
Stainless steel lockable drain valve
Operating Frequency
32 to 38kHz
Mains Connection
1 Year as standard – extend to 3 Years if registered online with us (within 30days of purchase)

Compare the Qi-Series

Qi-Series comparison table

Compare the products from the Qi-Series range
Overall Dimensions320 x 230 x 295mm320 x 300 x 420mm350 x 380 x 395mm530 x 380 x 395mm540 x 400 x 395mm
Internal Tank Dimensions275 x 128 x 150mm275 x 217 x 200mm305 x 275 x 200mm485 x 275 x 220mm500 x 300 x 240mm
Internal Basket Dimensions250 x 110 x 75mm245 x 195 x 125mm275 x 250 x 125mm455 x 250 x 140mm475 x 275 x 185mm
Maximum Capacity5 Litres12 Litres17 Litres30 Litres36 Litres
Working Capacity4.5 Litres10.5 Litres14.5 Litres26 Litres32 Litres
Digital ControlYYYYY
Temperature ControlUp to 80°CUp to 80°CUp to 80°CUp to 80°CUp to 80°C
Timer0 to 99 Minutes & Continuous0 to 99 Minutes & Continuous0 to 99 Minutes & Continuous0 to 99 Minutes & Continuous0 to 99 Minutes & Continuous
Industrial Grade TankYYYYY
Degas ModeYYYYY
Drain ValveYYYYY
Energy Saving ModeYYYYY
Fluid Level ProtectionYYYYY
Frequency Leap TechnologyYYYYY
Power AdjustYYYYY
