Description

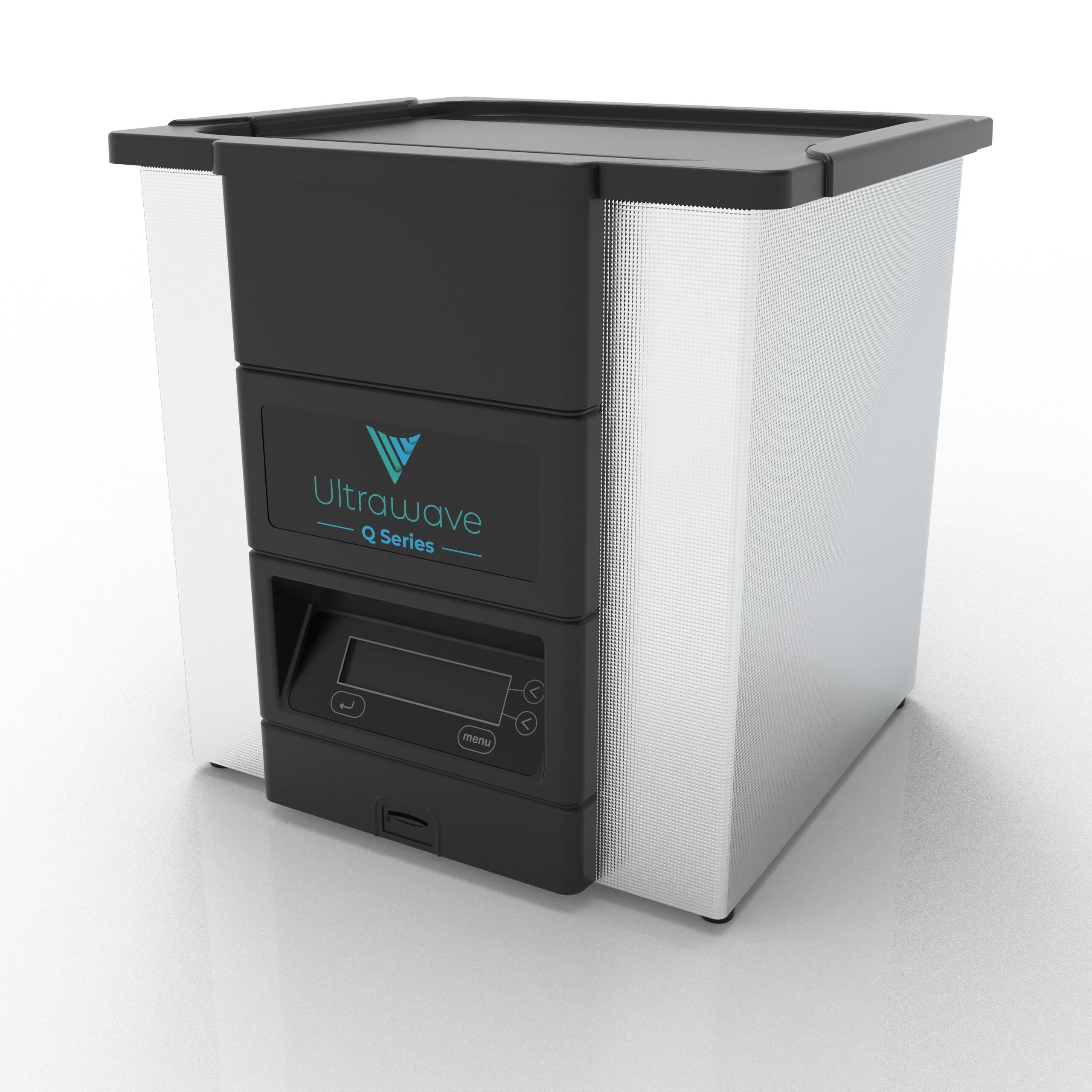

The QS18 ultrasonic cleaning bath offers heated, repeatable and traceable cleaning performance for a wide range of industries. Incorporating Frequency Leap technology, the Q-Series combines excellent ultrasonic cleaning efficiency with ease of operation. The QS18 has been designed with deeper components in mind to offer superior cleaning performance.

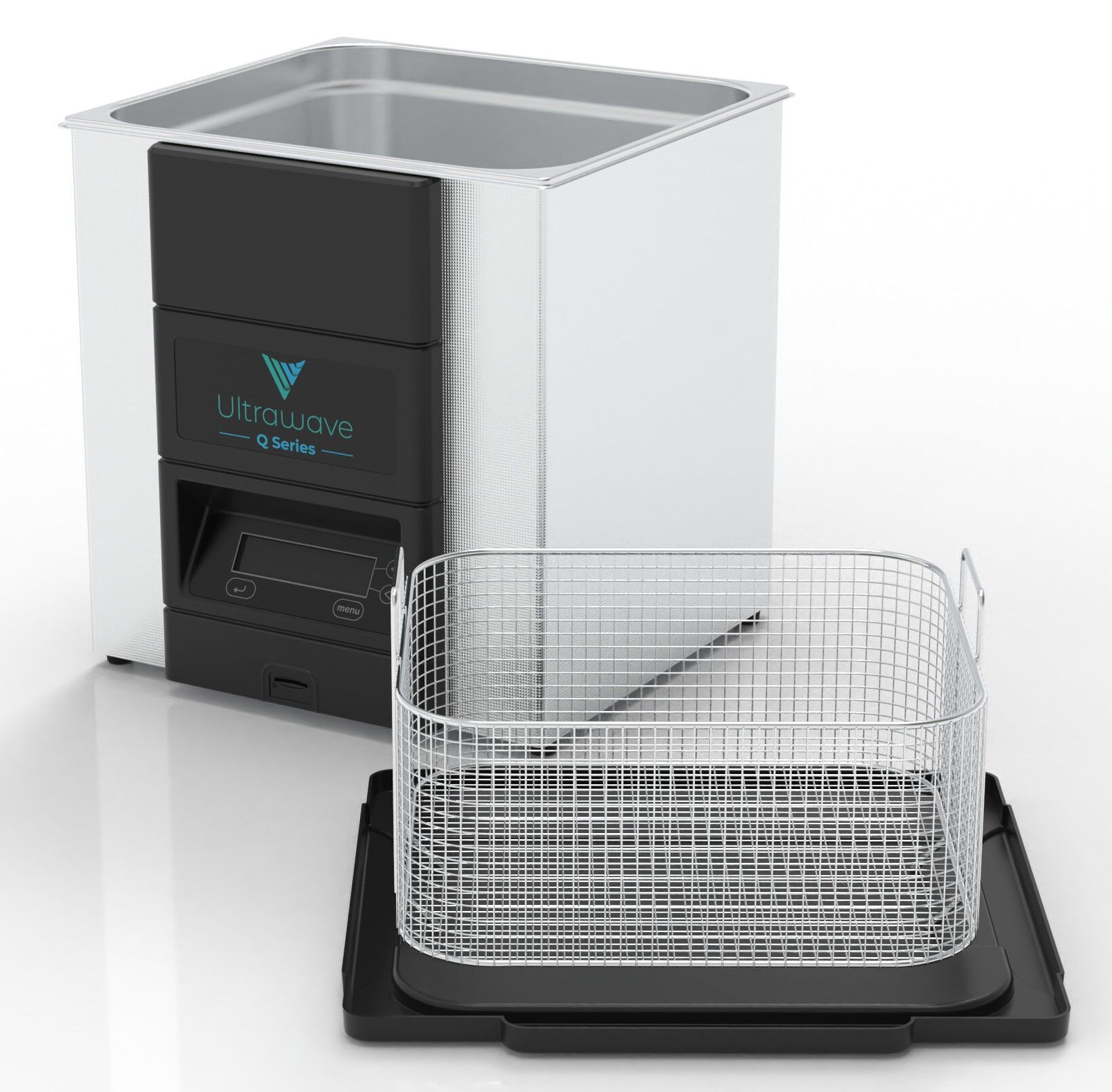

The QS18 is easily operated digital time and temperature control interface, with a 17.5 litre working capacity tank and is supplied complete with a stainless steel basket and a plastic lid which also doubles as a drip tray.
It offers full cleaning cycle traceability by storing all cleaning cycle information onto an SD card that can be removed and transferred to a computer by using the provided software. All data can then be stored or printed for compliance and regulation obligations.
For the best results use an Ultrawave cleaning detergent that has been specially formulated for your application.
Q-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745
Additional information
| Weight | 13 kg |
|---|
Product Specifications
Overall Dimensions | 375 x 490 x 365mm (W x D x H) |
Internal Tank Dimensions | 330 x 300 x 200mm (W x D x H) |
Internal Basket Dimensions | 295 x 265 x 160mm (W x D x H) |
Maximum CapacityWorking Capacity | 18.5 Litres17.5 Litres |
Construction | 304 stainless steel tank |
Control | Digital control |
Operating Features | Degas mode |
Ultrasonic Power | 300W |
Operating Frequency | 32 to 38kHz |
Heating Power | 450W |
Mains Connection | 230VAC |
Warranty | 1 Year as standard – extend to 3 Years if registered online with us (within 30days of purchase) |
Compare the Q-Series Range
Q-Series comparison table
Compare the products from the Q-Series range| Q-Series |  |  |  |  |  |  |
| Model | QS5 | QS10 | QS12 | QS13 | QS18 | QS25 |
| Overall Dimensions | 340 x 325 x 265mm | 545 x 315 x 265mm | 345 x 435 x 365mm | 375 x 490 x 265mm | 375 x 490 x 365mm | 550 x 490 x 365mm |
| Tank Dimensions | 300 x 150 x 150mm | 505 x 140 x 150mm | 300 x 240 x 200mm | 330 x 300 x 150mm | 330 x 300 x 200mm | 505 x 300 x 200mm |
| Internal Basket Dimensions | 265 x 115 x 100mm | 465 x 100 x 110mm | 265 x 210 x 160mm | 295 x 265 x 110mm | 295 x 265 x 160mm | 465 x 265 x 160mm |
| Maximum Capacity | 5 Litres | 10.5 Litres | 14 Litres | 13 Litres | 18.5 Litres | 28 Litres |
| Working Capacity | 4.5 Litres | 9.5 Litres | 12.5 Litres | 12.5 Litres | 17.5 Litres | 25 Litres |
| Digital Control | Y | Y | Y | Y | Y | Y |
| Temperature Control | Up to 70°C | Up to 70°C | Up to 70°C | Up to 70°C | Up to 70°C | Up to 70°C |
| Timer | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes |
| Degas Mode | Y | Y | Y | Y | Y | Y |
| Digital Traceability | Y | Y | Y | Y | Y | Y |
| Drain Valve | Y | Y | Y | Y | Y | Y |
| Energy Saving Mode | Y | Y | Y | Y | Y | Y |
| Fluid Level Protection | Y | Y | Y | Y | Y | Y |
| Frequency Leap Technology | Y | Y | Y | Y | Y | Y |
| Power Adjust | Y | Y | Y | Y | Y | Y |
