Description

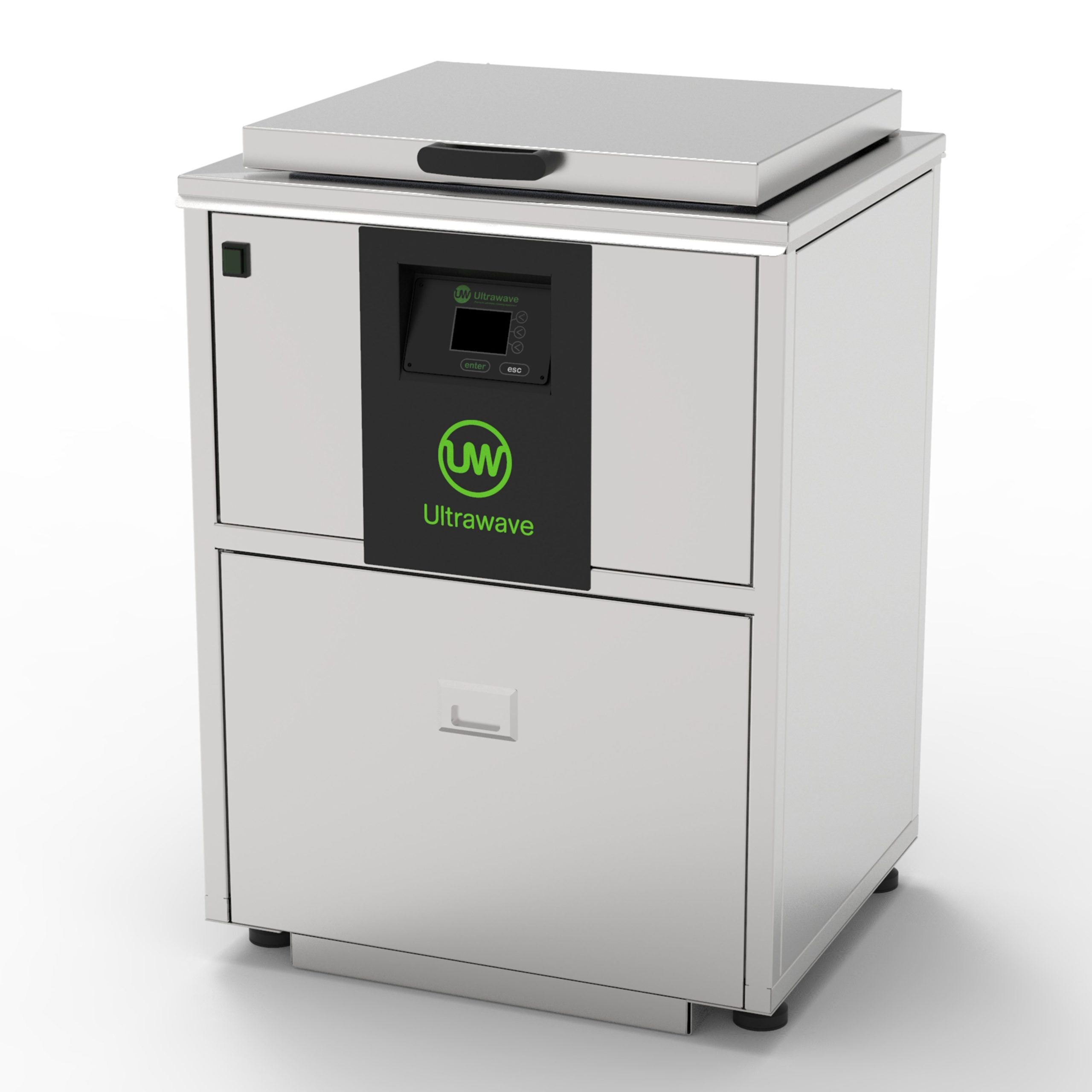

The Neon 35 Ultrasonic Cleaning System enhances your cleaning processes with advanced Frequency Leap Technology. It delivers outstanding performance while also reducing operating costs. Additionally, all wetted parts use 316 stainless steel, which improves chemical compatibility and maximises system longevity.

Moreover, the Neon 35 Ultrasonic Cleaning System includes a sinusoidal overflow-weir, jetting system, stainless steel pump, and filtration system—all within a compact footprint. The recirculated fluid removes contaminants from the tank more effectively and reduces drag-through. As a result, the system uses less water and less detergent than standard ultrasonic cleaners, lowering waste and running costs.

You can use the Neon 35 as a standalone cleaning tank. Alternatively, its modular design lets you add wash, rinse, or drying stages whenever you need them. This flexibility gives you high-quality ultrasonic cleaning with significantly reduced operating expenses, all from one small, efficient system.

Furthermore, Neon-Series Ultrasonic Cleaners qualify as Class I Medical Devices and comply with MDR (EU) 2017/745.

Please note that the Neon 35 offers multiple variants to suit different applications. Because of this configurability, we can only estimate final pricing before a site survey.

If you would like more guidance, we’re happy to help. You can contact us through the chat box on your screen or give us a call for quick and concise advice.

For the best results, use an Ultrawave Ultraclean detergent specially formulated for ultrasonic cleaning.



Additional information

Weight 126.2 kg

Product Specifications



Overall Dimensions
685 x 600 x 905mm (W x D x H)
Internal Tank Dimensions
500 x 400 x 280mm
Working Tank Dimensions
500 x 300 x 230mm
Basket Dimensions
425 x 255 x 195mm
Working Capacity
35 Litres
Construction
Industrial Grade 2mm stainless steel 316L tank
Control
Digital control
Graphical User Interface with split level program security
Temperature (Ambient to 80°C)
Time (0 to 80 minutes)
Operating Features
316 Stainless steel lockable drain valve
Fluid level protection
Frequency Leap Technology
Heated
Industrial grade tank
Multi-stage modular compatibility (Rinse and Dryer options available)
Recirculation system
Safety thermal cut off
Support Struts for basket draining
Tri-program temperature control
Ultrasonic Power
500W
Operating Frequency
32 to 38kHz
Heating Power
2000W
Mains Connection
230Vac, 13A plug
Warranty
1 year standard
Options available for 3Year or 5year extended warranty as part of the Planned Preventative Maintenance Service (PPMS)

Compare the NEON-Series

Neon-Series comparison table

Compare the products from the Neon-Series range
Neon Series
ModelNeon 35Neon 60Neon 90Neon 125
Overall Dimensions685 x 600 x 905mm685 x 700 x 905mm765 x 800 x 905mm845 x 750 x 1005mm
Tank Dimensions500 x 400 x 280mm500 x 500 x 350mm600 x 600 x 350mm700 x 550 x 450mm
Working Tank Dimensions500 x 300 x 230mm500 x 400 x 300mm600 x 500 x 300mm700 x 450 x 400mm
Basket Dimensions425 x 255 x 195mm425 x 355 x 265mm525 x 455 x 265mm625 x 405 x 365mm
Capacity35 Litres60 Litres90 Litres125 Litres
Hinged LidYYYY
HeatedUp to 80°CUp to 80°CUp to 80°CUp to 80°C
TimerUp to 80 minutesUp to 80 minutesUp to 80 minutesUp to 80 minutes
Fluid Level ProtectionYYYY
Frequency Leap TechnologyYYYY
Multi-Stage CapabilityYYYY
Recirculation and FiltrationYYYY
Integrated Basket DrainingYYYY
