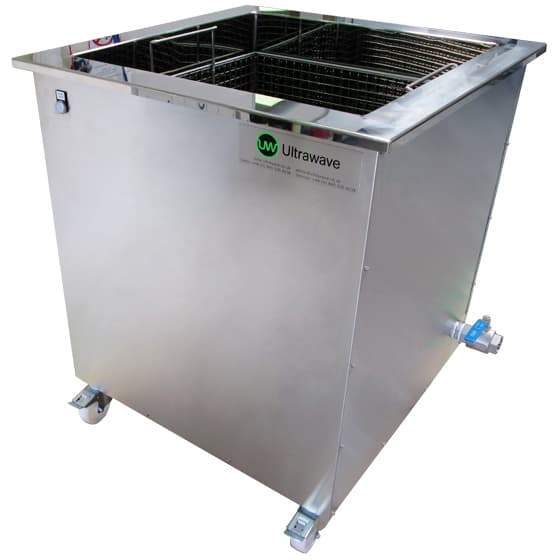

The HDX294 is a large single stage ultrasonic cleaning system, designed for use in multiple industries and applications.

The 316L grade 2mm thick stainless steel tank offers durability, whilst the radius corners facilitate cleaning of the ultrasonic cleaning system.

With a simple On/Off switch at the front of the machine, the HDX294 is controlled by an external wall mounted generator for ease of serviceability.

Incorporating lockable castors, the HDX294 is ergonomic and user friendly.



See also our Argon Series Ultrasonic Cleaning Systems for cleaning and processing large and/or high quantity of components.





Additional information

Weight 200000 kg

Product Specifications

Overall Dimensions
880 x 880 x 1020mm (W x D x H)
Overall Tank Dimensions
700 x 700 x 700mm
Basket Dimensions
685 x 685 x 665mm
Capacity
294 Litres
Construction
2mm thick 316L stainless steel tank
Control
Digital control (Separate Generator)
Temperature (Ambient to 80°)
Time (0 to 80 minutes)
Operating Features
External wall mounted generator with programmable software
Fluid level protection
Frequency Leap Technology
Lockable drain valve
Radius corners within the tank
Ultrasonic Power
3000W Peak to Peak
6000W RMS
Operating Frequency
30 to 40kHz
Heating Power
4000W
Mains Connection
230Vac, 32A
Warranty
1 year
