Description

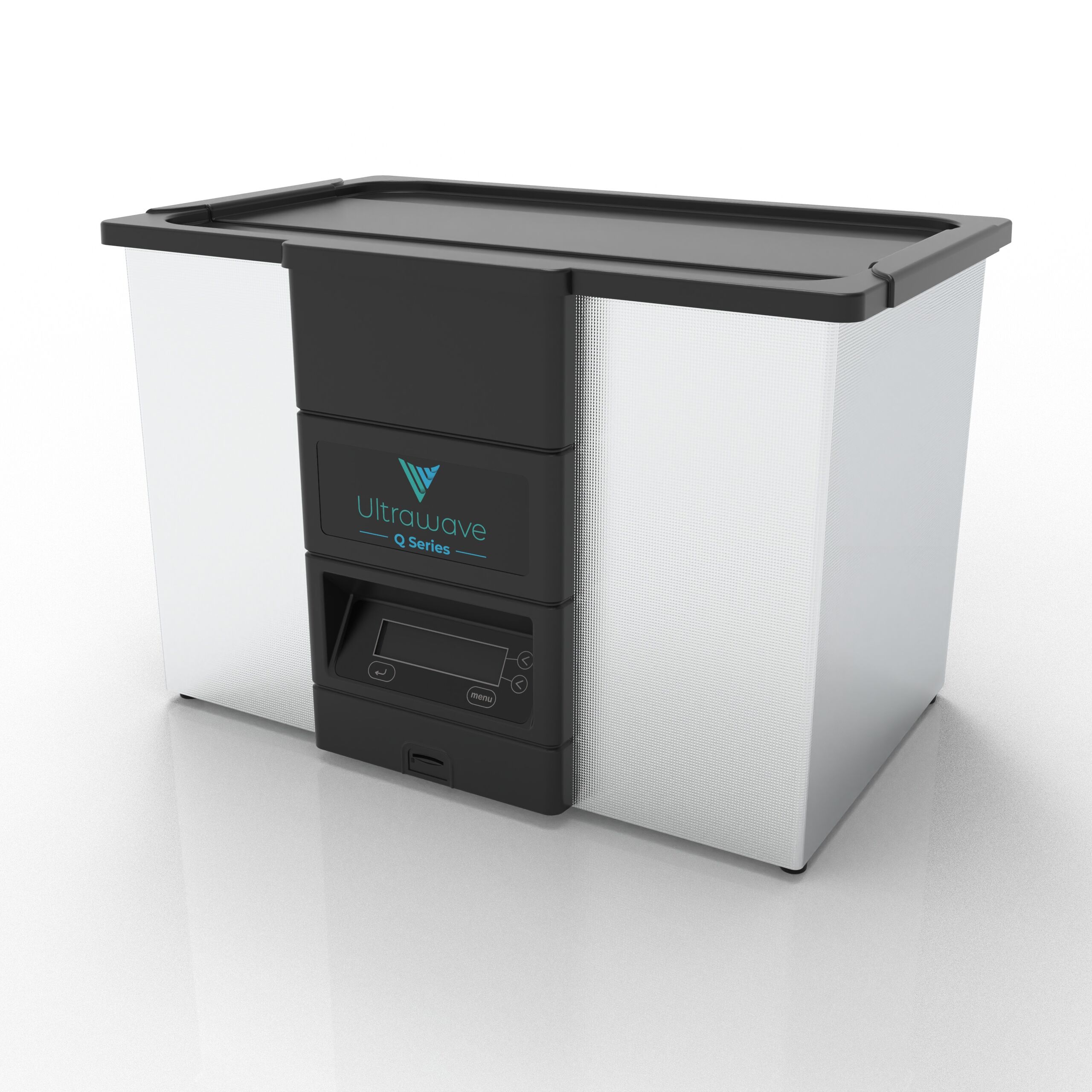

The QS25 ultrasonic cleaning bath is our largest Q series machine, it offers heated, repeatable and traceable cleaning performance for a wide range of industries. Incorporating Frequency Leap technology, the Q-Series combines excellent ultrasonic cleaning efficiency with ease of operation. The QS25 has been designed with larger components in mind to offer superior cleaning performance.

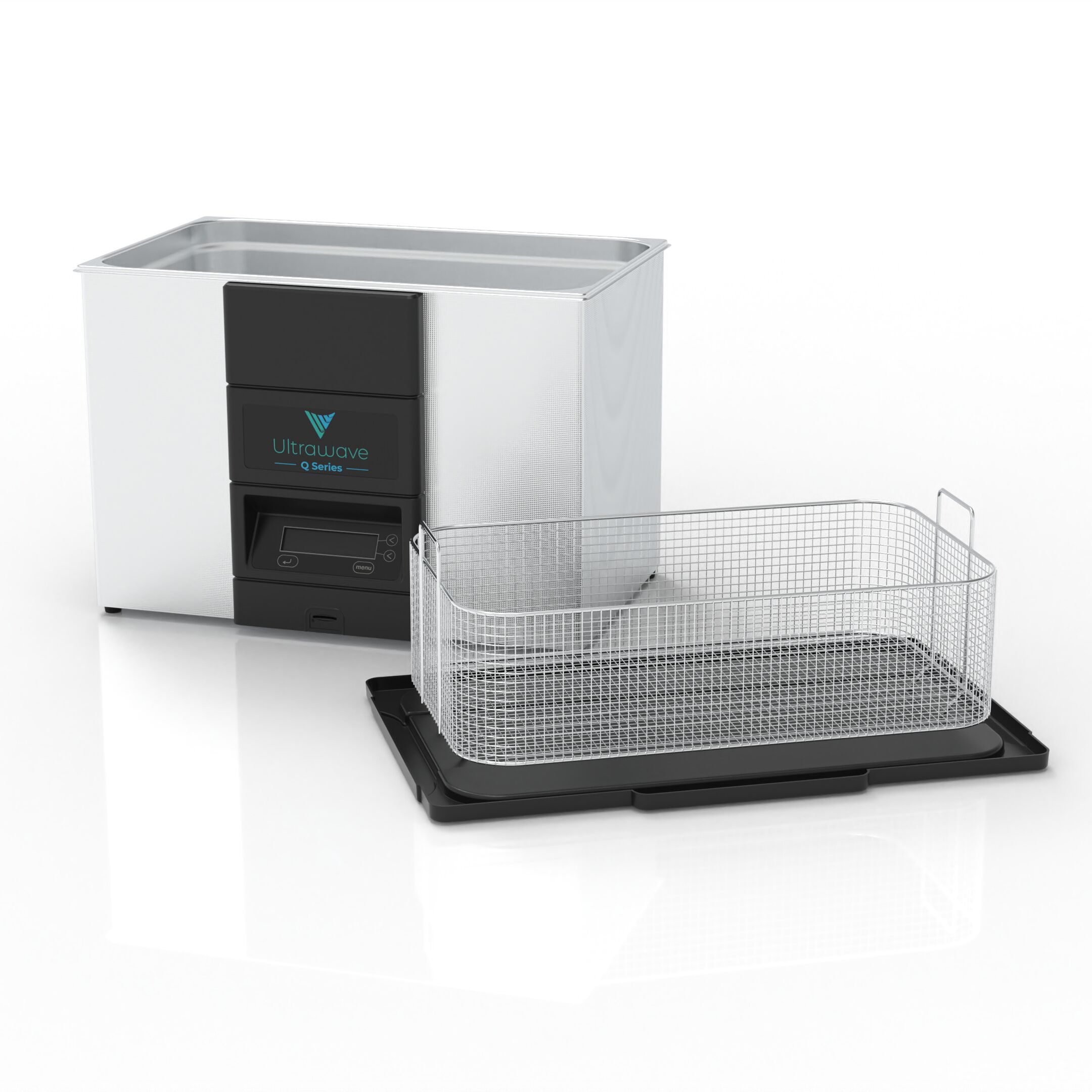

The QS25 is easily operated digital time and temperature control interface, with a 25 litre working capacity tank and is supplied complete with a stainless steel basket and a plastic lid which also doubles as a drip tray.

It offers full cleaning cycle traceability by storing all cleaning cycle information onto an SD card that can be removed and transferred to a computer by using the provided software. All data can then be stored or printed for compliance and regulation obligations.

For the best results use an Ultrawave cleaning detergent that has been specially formulated for your application.



Q-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745

Additional information

Weight 16.1 kg

Product Specifications



Overall Dimensions
550 x 490 x 365mm (W x D x H)
Internal Tank Dimensions
505 x 300 x 200mm (W x D x H)
Internal Basket Dimensions
465 x 265 x 160mm (W x D x H)
Maximum Capacity
Working Capacity
28 Litres
25 Litres
Construction
304 stainless steel tank
Control
Digital control
Temperature (Ambient to 70°)
Time (0 to 99 minutes)
Operating Features
Degas mode
Digital traceability
Drain valve
Energy saving mode
Fluid level protection
Frequency Leap Technology
Heated
Power adjust
Ultrasonic Power
400W
Operating Frequency
32 to 38kHz
Heating Power
650W
Mains Connection
230VAC
Warranty
1 Year as standard – extend to 3 Years if registered online with us (within 30days of purchase)

Compare the Q-Series Range

Q-Series comparison table

Compare the products from the Q-Series range
Q-Series
ModelQS5QS10QS12QS13QS18QS25
Overall Dimensions340 x 325 x 265mm545 x 315 x 265mm345 x 435 x 365mm375 x 490 x 265mm375 x 490 x 365mm550 x 490 x 365mm
Tank Dimensions300 x 150 x 150mm505 x 140 x 150mm300 x 240 x 200mm330 x 300 x 150mm330 x 300 x 200mm505 x 300 x 200mm
Internal Basket Dimensions265 x 115 x 100mm465 x 100 x 110mm265 x 210 x 160mm295 x 265 x 110mm295 x 265 x 160mm465 x 265 x 160mm
Maximum Capacity5 Litres10.5 Litres14 Litres13 Litres18.5 Litres28 Litres
Working Capacity4.5 Litres9.5 Litres12.5 Litres12.5 Litres17.5 Litres25 Litres
Digital ControlYYYYYY
Temperature ControlUp to 70°CUp to 70°CUp to 70°CUp to 70°CUp to 70°CUp to 70°C
Timer0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes0 to 99 Minutes
Degas ModeYYYYYY
Digital TraceabilityYYYYYY
Drain ValveYYYYYY
Energy Saving ModeYYYYYY
Fluid Level ProtectionYYYYYY
Frequency Leap TechnologyYYYYYY
Power AdjustYYYYYY
