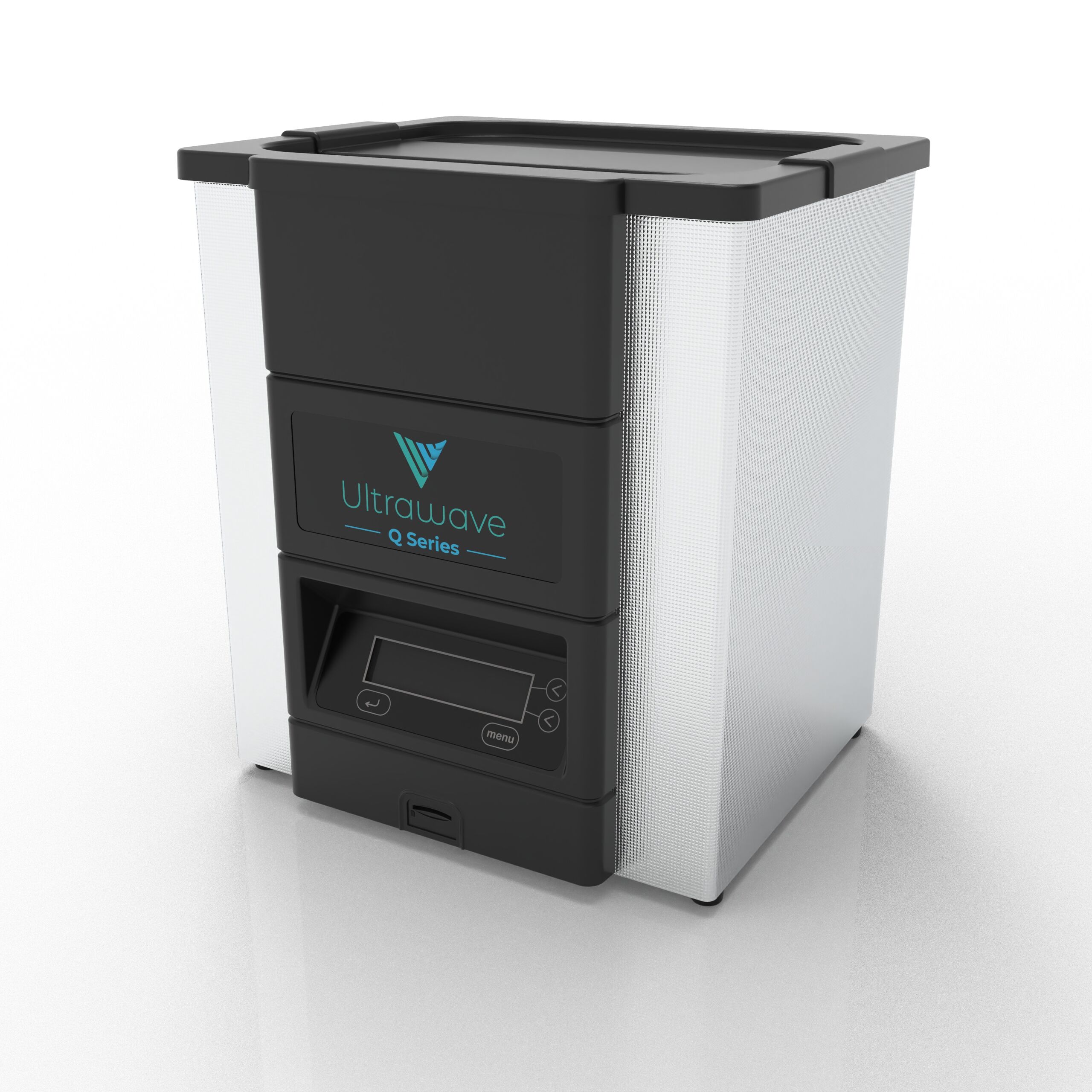

QS12 Ultrasonic Cleaning Bath

QS12 Ultrasonic Cleaning Bath

SKU: F00243 Q-Series Tags Aerospace Parts, allproducts, Capacity 12.5L, Engineering Parts, Filters, Industry Aerospace, Industry Automotive Manufacturing, Industry Automotive Servicing, Industry Defence & Weaponry, Industry Engineering, Industry Filtration, Industry Food & Beverage, Industry Hospitals (Sterile Services), Industry Offshore, Industry Optical, Industry Pharmaceutical, Industry Plating & Surface Finishing, Industry Podiatry, Industry Printing Technology & Equipment, Industry Scientific & Laboratory, Industry Veterinary, Item Depth (Up to) 135mm, Item Depth (Up to) 195mm, Item Depth (Up to) 215mm, Item Height (Up to) 125mm, Item Height (Up to) 140mm, Item Height (Up to) 90mm, Item Width (Up to) 220mm, Item Width (Up to) 245mm, Item Width (Up to) 250mm, Item Width (Up to) 265mm, Laboratory Equipment, Machine Type Benchtop, Medical Instruments, Model QS12, Moulds Tools & Dies, Optical Equipment, Orthopaedic Implants, Scientific Instruments, Series Q-Series, Ultrasonic Power 200W, Veterinary Equipment

Enquire Now

Description

The QS12 ultrasonic cleaning bath offers heated, repeatable and traceable cleaning performance for a wide range of industries. Incorporating Frequency Leap technology, the Q-Series combines excellent ultrasonic cleaning efficiency with ease of operation. The QS12 has been designed with deeper components in mind to offer superior cleaning performance.

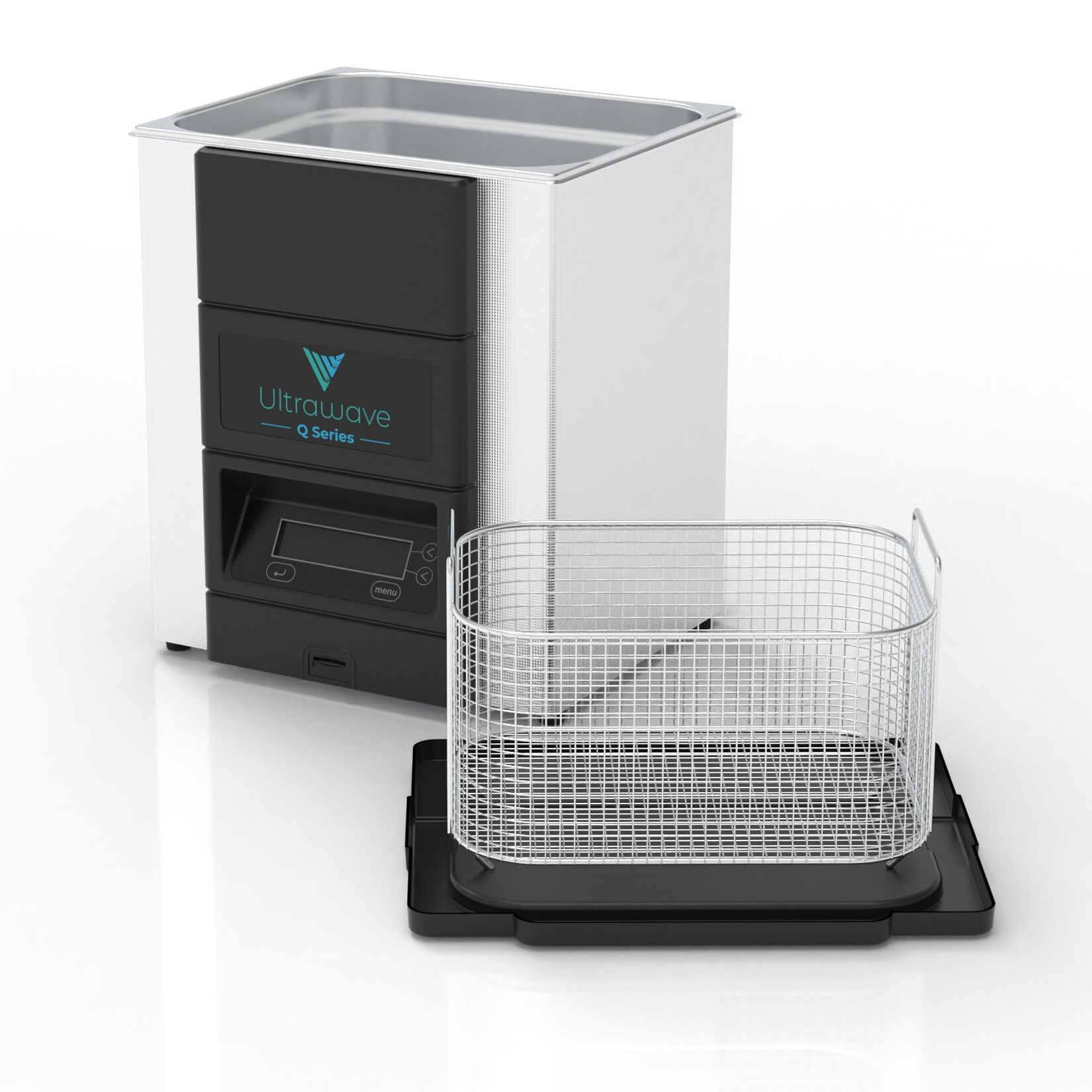

The QS12 is easily operated digital time and temperature control interface, with a 12.5 litre working capacity tank and is supplied complete with a stainless steel basket and a plastic lid which also doubles as a drip tray.

It offers full cleaning cycle traceability by storing all cleaning cycle information onto an SD card that can be removed and transferred to a computer by using the provided software. All data can then be stored or printed for compliance and regulation obligations.

For the best results use an Ultrawave cleaning detergent that has been specially formulated for your application.

Q-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745

Additional information

Weight	11 kg

Product Specifications

QS12 Product Specification

Overall Dimensions	345 x 435 x 365mm (W x D x H)
Internal Tank Dimensions	300 x 240 x 200mm (W x D x H)
Internal Basket Dimensions	260 x 210 x 160mm (W x D x H)
Maximum Capacity Working Capacity	14 Litres 12.5 Litres
Construction	304 stainless steel tank
Control	Digital control Temperature (Ambient to 70°) Time (0 to 99 minutes)
Operating Features	Degas mode Digital traceability Drain valve Energy saving mode Fluid level protection Frequency Leap Technology Heated Power adjust
Ultrasonic Power	200W
Operating Frequency	32 to 38kHz
Heating Power	300W
Mains Connection	230VAC
Warranty	1 Year as standard – extend to 3 Years if registered online with us (within 30days of purchase)

Compare the Q-Series Range

Q-Series comparison table

Compare the products from the Q-Series range

Q-Series
Model	QS5	QS10	QS12	QS13	QS18	QS25
Overall Dimensions	340 x 325 x 265mm	545 x 315 x 265mm	345 x 435 x 365mm	375 x 490 x 265mm	375 x 490 x 365mm	550 x 490 x 365mm
Tank Dimensions	300 x 150 x 150mm	505 x 140 x 150mm	300 x 240 x 200mm	330 x 300 x 150mm	330 x 300 x 200mm	505 x 300 x 200mm
Internal Basket Dimensions	265 x 115 x 100mm	465 x 100 x 110mm	265 x 210 x 160mm	295 x 265 x 110mm	295 x 265 x 160mm	465 x 265 x 160mm
Maximum Capacity	5 Litres	10.5 Litres	14 Litres	13 Litres	18.5 Litres	28 Litres
Working Capacity	4.5 Litres	9.5 Litres	12.5 Litres	12.5 Litres	17.5 Litres	25 Litres
Digital Control	Y	Y	Y	Y	Y	Y
Temperature Control	Up to 70°C	Up to 70°C	Up to 70°C	Up to 70°C	Up to 70°C	Up to 70°C
Timer	0 to 99 Minutes	0 to 99 Minutes	0 to 99 Minutes	0 to 99 Minutes	0 to 99 Minutes	0 to 99 Minutes
Degas Mode	Y	Y	Y	Y	Y	Y
Digital Traceability	Y	Y	Y	Y	Y	Y
Drain Valve	Y	Y	Y	Y	Y	Y
Energy Saving Mode	Y	Y	Y	Y	Y	Y
Fluid Level Protection	Y	Y	Y	Y	Y	Y
Frequency Leap Technology	Y	Y	Y	Y	Y	Y
Power Adjust	Y	Y	Y	Y	Y	Y
