Description

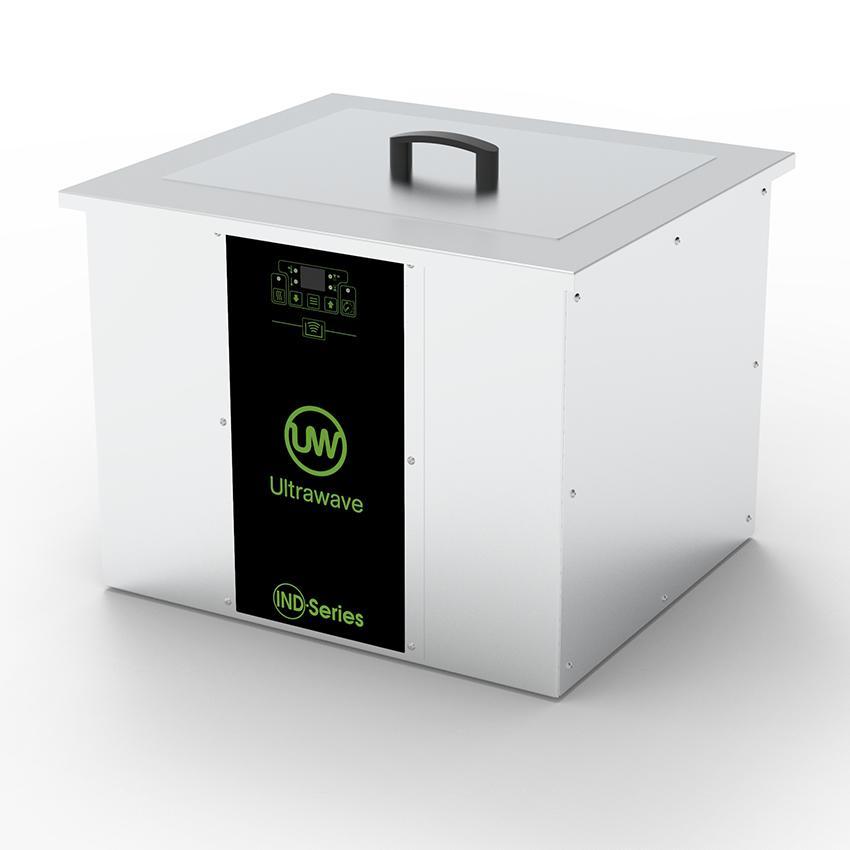

The IND80 Industrial Ultrasonic Cleaner is robust and reliable, delivering effective cleaning results.
Effective cleaning and high productivity
The improved cleaning results reduce the need for re-cleans or rejects, whilst the simple one-button-press operation allows the operator to process other tasks during the cleaning cycle.
Minimal Environmental Impact
The IND-Series utilises an aqueous cleaning process with minimal impact and satisfies health and safety requirements. The stainless steel lid acts as an insulator, minimising evaporation thus lowering heating requirements, water and detergent usage.
Robust and reliable
Built with a heavy duty 316L stainless steel tank, the longevity of the IND-Series is maximised. The stainless steel basket shelf further minimises wear whilst parts are positioned to ensure maximum exposure to ultrasonic cleaning activity.
The Ultrawave IND80 is also available as a heat only tank. This is suitable for rinsing parts & components after the cleaning stage in certain specific applications. If you would like to understand more please contact us on the Ultrawave Customer Service line or contact us via the online chat box on the bottom left of your screen. The IND80 was formally known as the IND5040D.
Additional information
| Weight | 91 kg |
|---|---|

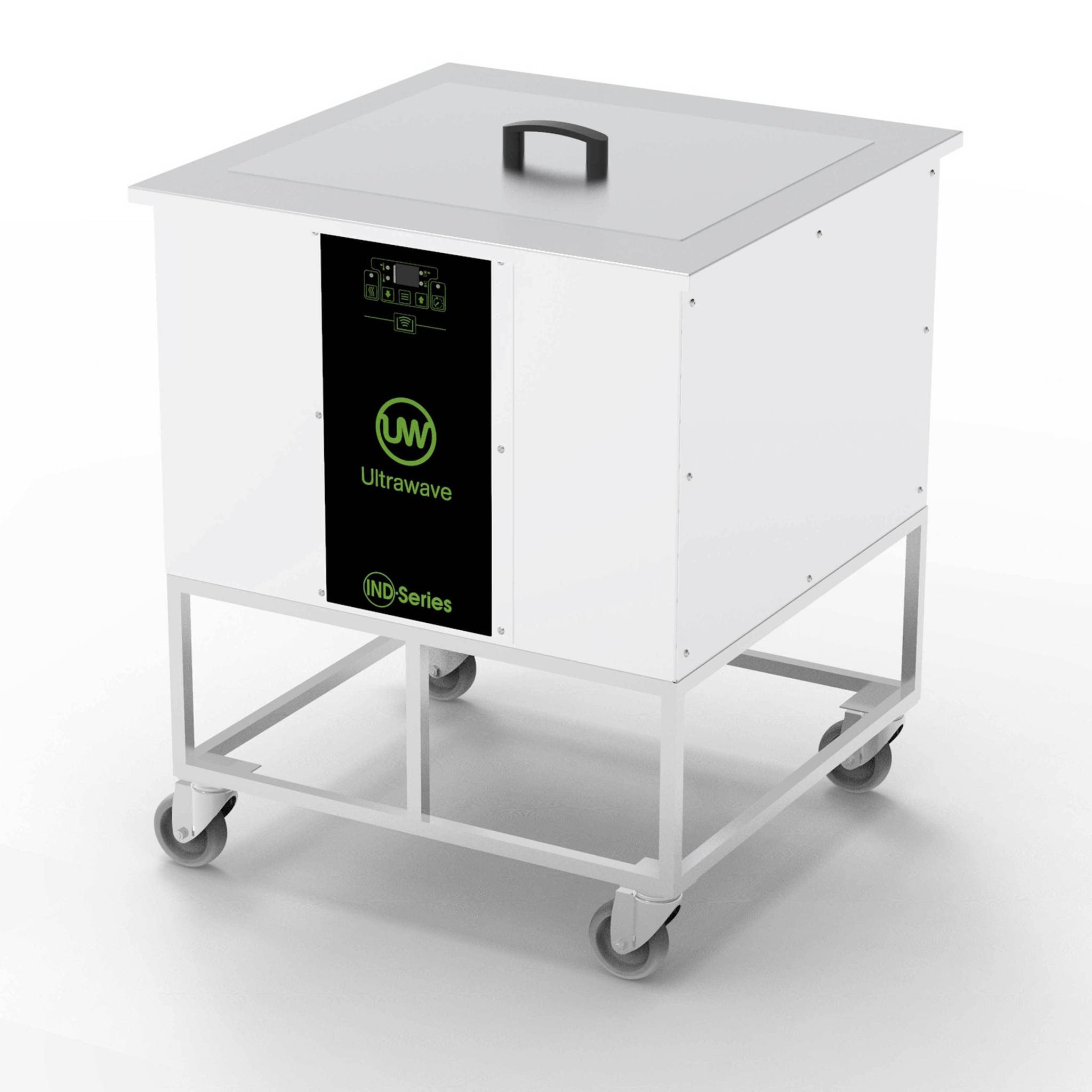

| With wheeled stand? | Yes, No |
Product Specifications
Overall Dimensions | 665 x 660 x 545mm (W x D x H) |
Internal Tank Dimensions | 500 x 400 x 400mm |
Basket Dimensions | 470 x 370 x 335mm |
Tank Capacity | 80 Litres |
Construction | Industrial Grade 2mm stainless steel 316L tank |
Control | Digital control |
Operating Features | Basket shelf |
Ultrasonic Power | 700W |
Operating Frequency | 30 to 40kHz |
Heating Power | 2000W |
Mains Connection | 230Vac, 13A plug |
Warranty | 1 year standardOptions available for 3Year or 5year extended warranty as part of the Planned Preventative Maintenance Service (PPMS) |
Compare the IND-Series
| Model | IND30 | IND45 | IND75 | IND80 | IND90 | IND90L | IND100 | IND100L | IND145 | IND145L | IND155L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall Dimensions | 515 x 560 x 445mm | 615 x 560 x 545mm | 765 x 760 x 445mm | 665 x 660 x 545mm | 765 x 760 x 445mm | 1165 x 560 445mm | 765 x 710 x 545mm | 1365 x 560 x 445mm | 765 x 710 x 695mm | 1765 x 560 x 445mm | 1915 x 560 x 445mm |
| Tank Dimensions | 350 x 300 x 300mm | 450 x 300 x 350mm | 600 x 500 x 250mm | 500 x 400 x 400mm | 600 x 500 x 300mm | 1000 x 300 x 300mm | 600 x 450 x 400mm | 1200 x 300 x 300mm | 600 x 450 x 550mm | 1600 x 300 x 300mm | 1750 x 300 x 300mm |
| Basket Dimensions | 320 x 270 x 235mm | 420 x 270 x 285mm | 570 x 470 x 185mm | 470 x 370 x 335mm | 570 x 470 x 235mm | 970 x 270 x 250mm | 570 x 420 x 335mm | 1170 x 270 x 235mm | 570 x 420 485mm | 1570 x 270 x 235mm | 1720 x 270 x 235mm |
| Capacity | 32 Litres | 47 Litres | 75 Litres | 80 Litres | 90 Litres | 90 Litres | 108 Litres | 108 Litres | 148 Litres | 144 Litres | 158 Litres |
| Digital Control | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Temperature Control | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C |
| Timer | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes |
| Industrial Grade Tank SS 316L | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Lockable Drain Valve SS 316 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Safety Thermal Cutoff | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Fluid Level Protection | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
