Description

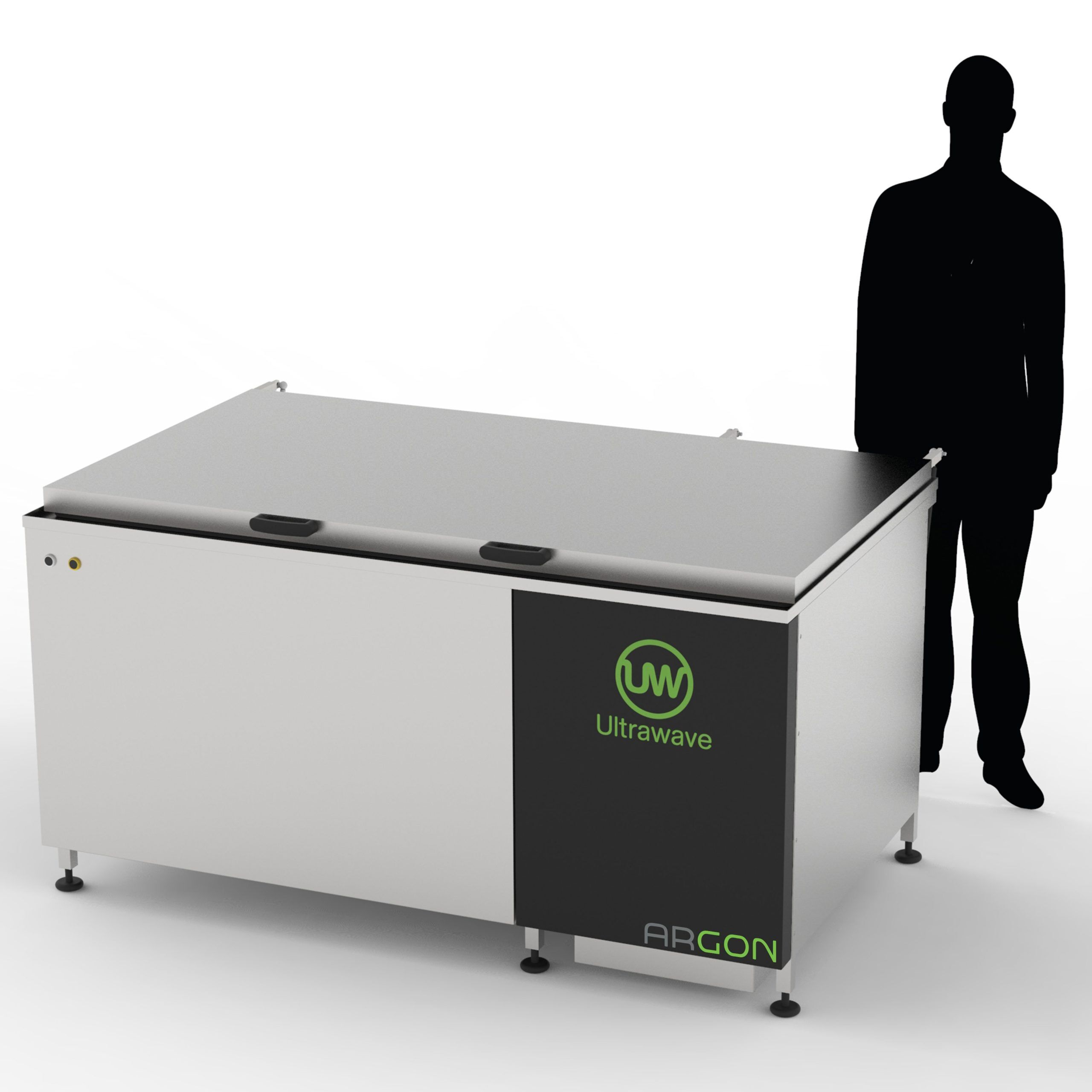

Ultrawave’s Argon 500 Ultrasonic Cleaning System has a capacity of 500L, delivering outstanding cleaning performance with cost saving and environmental benefits for processing large components or multiple batches.

Incorporating Ultrawave’s Frequency Leap Technology and an integral re-circulation system, the Argon Series has the ability to lift contamination from all crevices, blind holes and hard to reach areas. Supplied with a hinged lid and a heavy duty basket, the Argon Series optimises usability for operators. While in depth programming can be preset at the wall mounted generator.

Designed for manufacturing and processing industries, these high performance, large ultrasonic cleaning systems will deliver outstanding cleaning quality and increase productivity.

Incorporating Ultrawave’s Frequency Leap Technology and an integral re-circulation system, the Argon Series has the ability to lift contamination from all crevices, blind holes and hard to reach areas. Supplied with a hinged lid and a heavy duty basket, the Argon Series optimises usability for operators. While in depth programming can be preset at the wall mounted generator.

Designed for manufacturing and processing industries, these high performance, large ultrasonic cleaning systems will deliver outstanding cleaning quality and increase productivity.

Please be aware that this particular model has a number of variants due to the different applications it can be suited for. It therefore has a reasonably wide level of configurability and its price can only be estimated prior to a site survey.

If you would like some more guidance we would love to help, just either talk to us through the chat-box on your screen or give us a call and we will be able to give you some quick and concise advice.

Additional information

Weight 475000 kg

Product Specifications

Overall Dimensions
1700 x 1020 x 1000mm (W x D x H)
Working Tank Dimensions
1035 x 820 x 590mm
Basket Dimensions
950 x 725 x 525mm
Working Capacity
500 Litres
Construction
Industrial Grade 2mm stainless steel 316L tank
Control
Simple on/off switch with advanced control accessible at the wall mounted control box
Temperature (Ambient to 80°C)
Time (0 to 80 minutes) & 7 Day Programmable
Operating Features
Fluid level protection
Frequency Leap Technology
Industrial Grade Tank for harsh environments
Hinged Lid with user assisted gas struts
Multi-stage modular compatibility (Rinse and Dryer options available)
Integrated Recirculation system with filtration
Safety thermal cut off
Hoist points for easy basket lifting
Oil skimming jetting system overflow weir
Ultrasonic Power
4800W
Operating Frequency
32 to 38kHz
Heating Power
9000W
Mains Connections
400-415V 3 Phase +N +E
Warranty
1 year standard
Options available for 3Year or 5year extended warranty as part of the Planned Preventative Maintenance Service (PPMS)

Compare the ARGON-Series

Argon-Series comparison table

Argon SeriesArgon 500 Ultrasonic Cleaner UltrawaveArgon 1000 Ultrawave Ultrasonic Cleaner
ModelArgon 250Argon 500Argon 1000
Overall Dimensions1455 x 800 x 885mm1700 x 1020 x 1000mm2120 x 1090 x 1070mm
Working Tank Dimensions830 x 600 x 520mm1035 x 820 x 590mm1380 x 890 x 810mm
Basket Dimensions730 x 500 x 430mm950 x 725 x 525mm1280 x 790 x 720mm
Working Capacity250 Litres500 Litres1000 Litres
Hinged LidYYY
HeatedUp to 80°CUp to 80°CUp to 80°C
TimerUp to 80 minute cycles and 7 day programmableUp to 80 minute cycles and 7 day programmableUp to 80 minute cycles and 7 day programmable
Fluid Level ProtectionYYY
Frequency Leap TechnologyYYY
Multi-Stage CapabilityYYY
Recirculation and FiltrationYYY
