Description

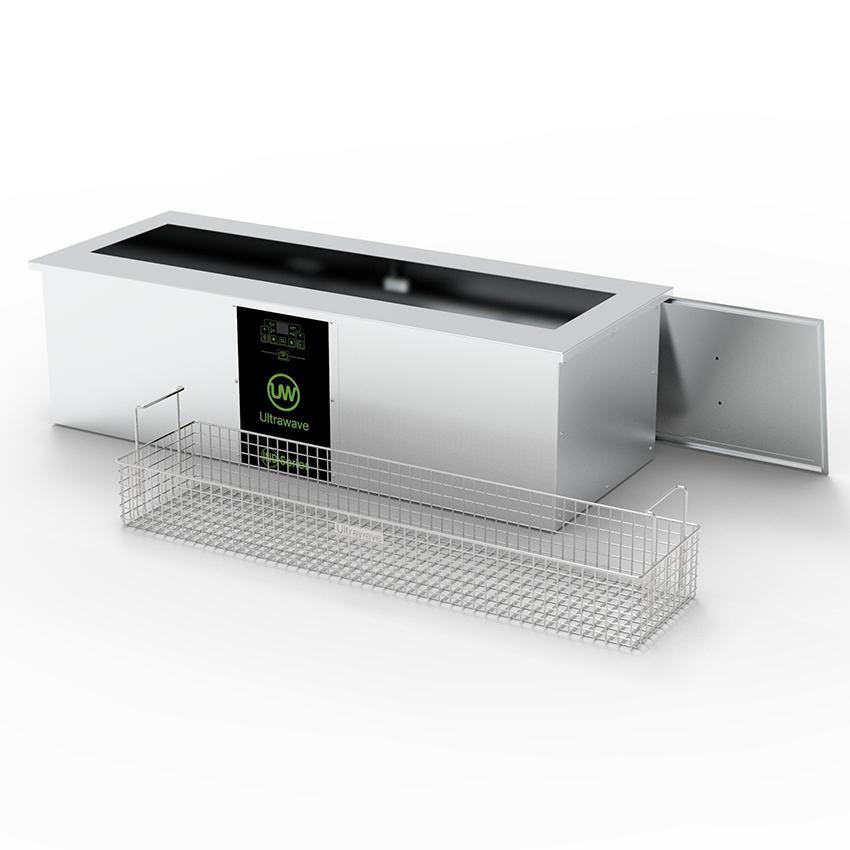

The IND100L Ultrasonic Cleaning Tank is a robust and reliable industrial cleaner. It delivers effective cleaning results for manufacturing, processing, and maintenance applications.
Effective cleaning and high productivity
The IND100L Ultrasonic Cleaning Tank improves cleaning quality and reduces the need for re-cleans or rejected parts. Additionally, its simple one-button operation lets operators focus on other tasks during the cleaning cycle, increasing overall productivity.
Minimal environmental impact
The IND-Series uses an aqueous cleaning process that supports health and safety requirements. Moreover, the stainless steel lid acts as an insulator and reduces evaporation. This design lowers heating demands and cuts water and detergent usage.
Robust and reliable construction
The IND100L Ultrasonic Cleaning Tank features a heavy-duty 316L stainless steel tank that maximises longevity. In addition, its stainless steel basket shelf minimises wear and positions parts for maximum exposure to ultrasonic cleaning activity.
Additional options
Ultrawave also offers the IND100L as a heat-only tank. This version is suitable for rinsing parts and components after the cleaning stage in specific applications. For more details, you can contact Ultrawave’s Customer Service team or use the online chat box on the bottom left of your screen. The IND100L was formerly known as the IND12030D.
For the best results, use an Ultrawave Ultraclean detergent specially formulated for ultrasonic cleaning.
Additional information
| Weight | 97.5 kg |
|---|---|

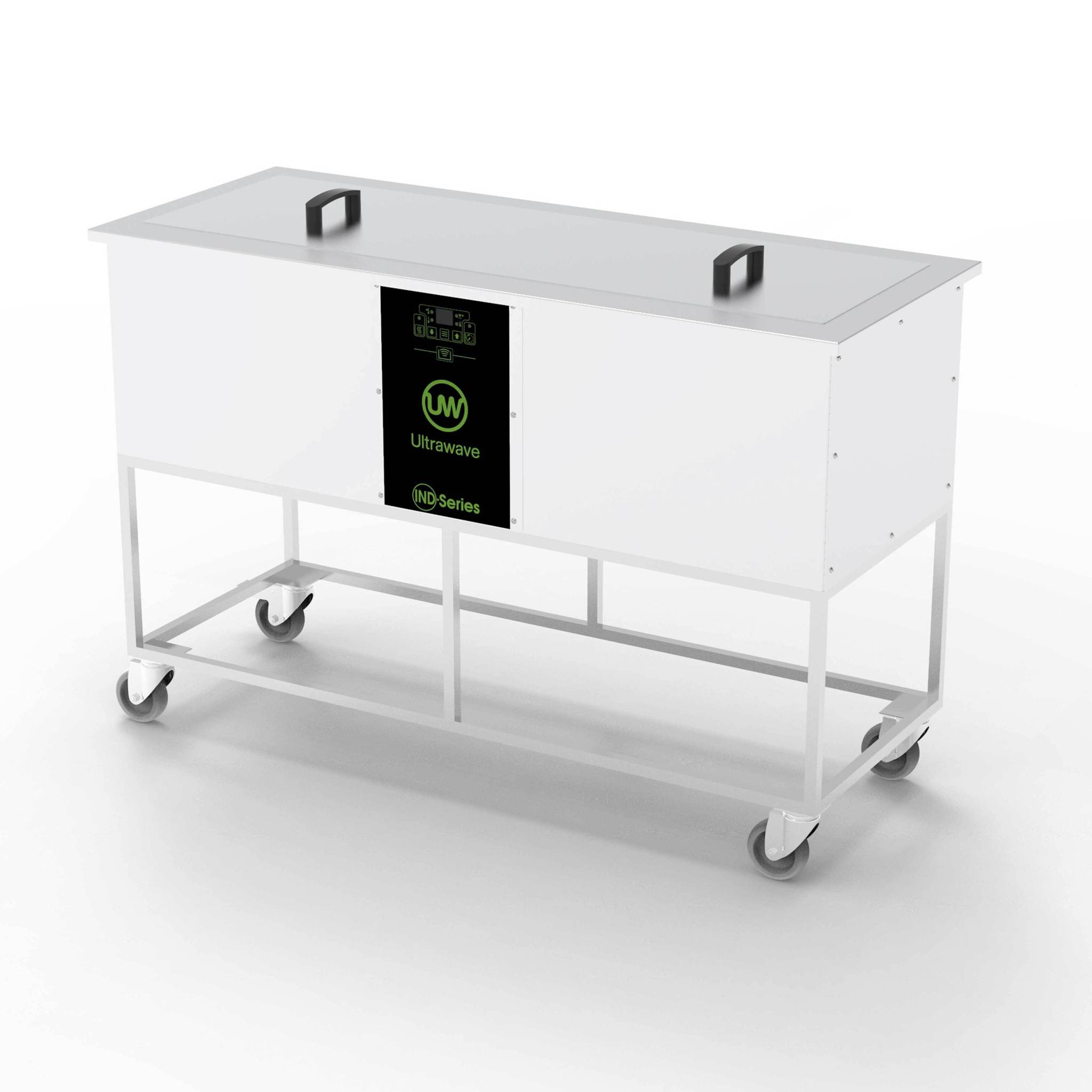

| With Wheeled Stand | Yes, No |
Product Specifications
Overall Dimensions |
1365 x 560 x 445mm (W x D x H) |
Internal Tank Dimensions |
1200 x 300 x 300mm |
Basket Dimensions |
1170 x 270 x 235mm |
Tank Capacity |
108 Litres |
Construction |
Industrial Grade 2mm stainless steel 316L tank |
Control |
Digital control
|
Operating Features |
Basket shelf
|
Ultrasonic Power |
1000W |
Operating Frequency |
30 to 40kHz |
Heating Power |
2000W |
Mains Connection |
230Vac, 13A plug |
Warranty |
1 year standardOptions available for 3Year or 5year extended warranty as part of the Planned Preventative Maintenance Service (PPMS) |
Compare the IND-Series
| Model | IND30 | IND45 | IND75 | IND80 | IND90 | IND90L | IND100 | IND100L | IND145 | IND145L | IND155L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall Dimensions | 515 x 560 x 445mm | 615 x 560 x 545mm | 765 x 760 x 445mm | 665 x 660 x 545mm | 765 x 760 x 445mm | 1165 x 560 445mm | 765 x 710 x 545mm | 1365 x 560 x 445mm | 765 x 710 x 695mm | 1765 x 560 x 445mm | 1915 x 560 x 445mm |
| Tank Dimensions | 350 x 300 x 300mm | 450 x 300 x 350mm | 600 x 500 x 250mm | 500 x 400 x 400mm | 600 x 500 x 300mm | 1000 x 300 x 300mm | 600 x 450 x 400mm | 1200 x 300 x 300mm | 600 x 450 x 550mm | 1600 x 300 x 300mm | 1750 x 300 x 300mm |
| Basket Dimensions | 320 x 270 x 235mm | 420 x 270 x 285mm | 570 x 470 x 185mm | 470 x 370 x 335mm | 570 x 470 x 235mm | 970 x 270 x 250mm | 570 x 420 x 335mm | 1170 x 270 x 235mm | 570 x 420 485mm | 1570 x 270 x 235mm | 1720 x 270 x 235mm |
| Capacity | 32 Litres | 47 Litres | 75 Litres | 80 Litres | 90 Litres | 90 Litres | 108 Litres | 108 Litres | 148 Litres | 144 Litres | 158 Litres |
| Digital Control | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Temperature Control | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C | Up to 80°C |
| Timer | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes | 0 to 99 Minutes |
| Industrial Grade Tank SS 316L | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Lockable Drain Valve SS 316 | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Safety Thermal Cutoff | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Fluid Level Protection | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
