Description

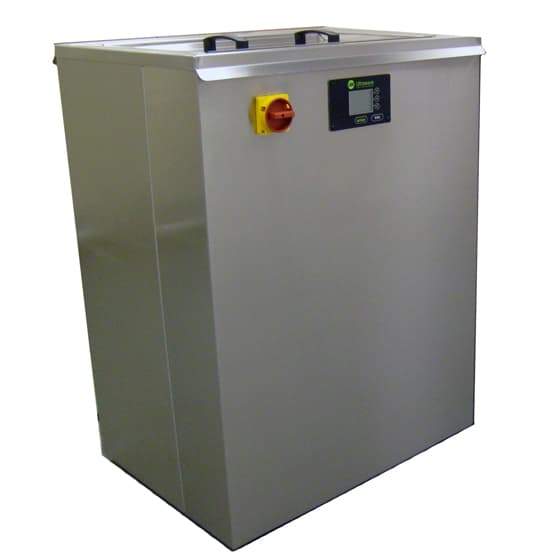

The DX192 is an Industrial grade ultrasonic cleaner with advanced programming features for precision industries.

Combining high performance ultrasonic cleaning power with a robust 2mm thick stainless steel tank, the DX192 has been designed for incorporation into manufacturing and maintenance programmes where the highest standards are essential.



See also our IND Series Ultrasonic Cleaning Tanks for cleaning and processing of components or our Argon Series Ultrasonic Cleaning Systems for cleaning and processing large and/or higher quantity of components.

Additional information

Weight 250 kg

Product Specifications

Overall Dimensions
755 x 675 x 1045mm (W x D x H)
Maximum Tank Dimensions
600 x 400 x 800mm
Basket Dimensions
570 x 370 x 770mm
Capacity
192 Litres
Construction
2mm thick 304 stainless steel tank
Control
Digital control
Temperature (Ambient to 80°)
Time (0 to 99 minutes)
Operating Features
Fluid level protection
Lockable drain valve
Ultrasonic Power
2400W RMS
4800W Peak to Peak
Operating Frequency
30 to 40kHz
Heating Power
6000W
Mains Connection
400 to 415V 3Phase + N + E
Warranty
1 year
