Description

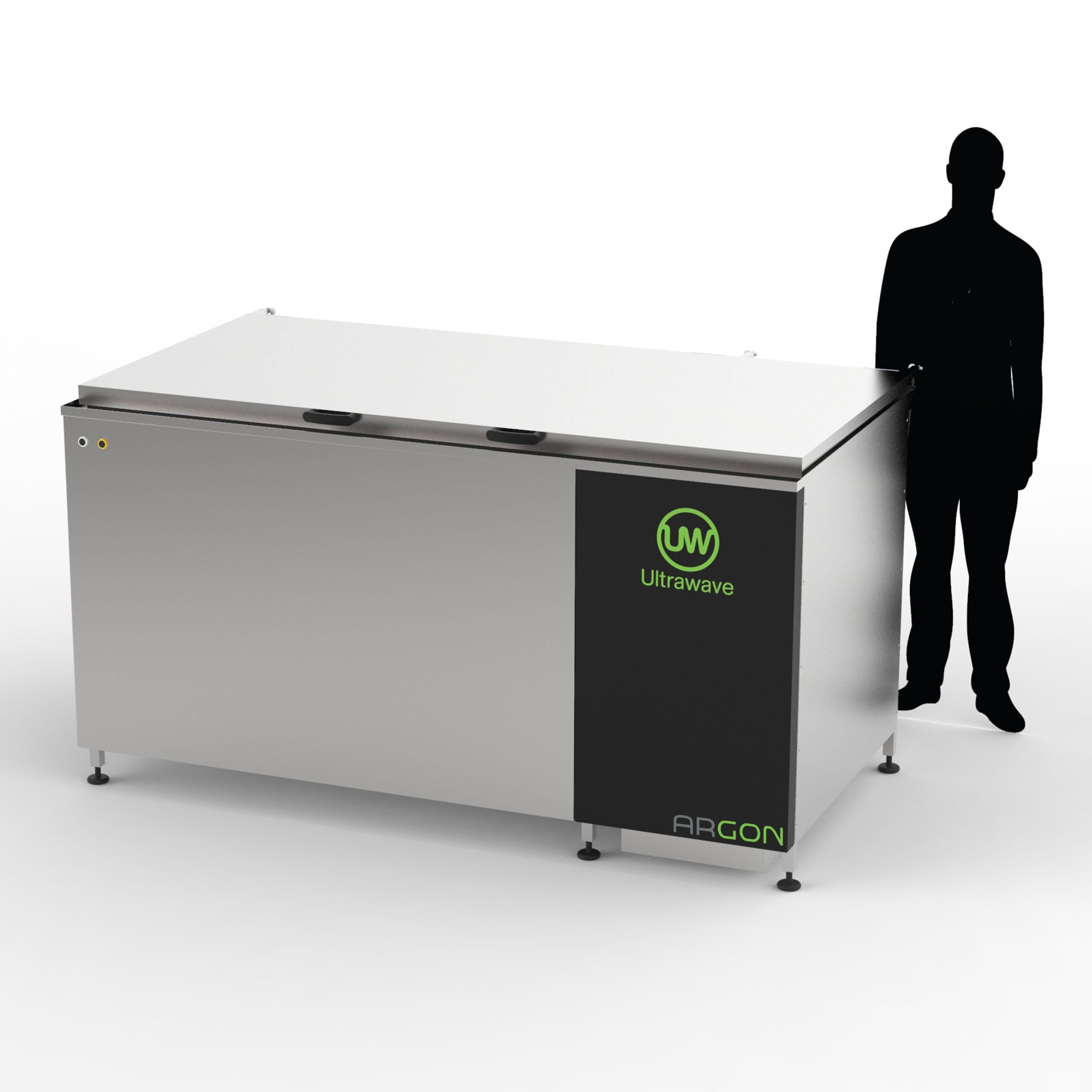

Ultrawave’s Argon 1000 Ultrasonic Cleaning System has a capacity of 1000Litres, delivering outstanding cleaning performance with cost saving and environmental benefits for processing large components or multiple batches.
Incorporating Ultrawave’s Frequency Leap Technology and an integral re-circulation system, the Argon Series has the ability to lift contamination from all crevices, blind holes and hard to reach areas. Supplied with a hinged lid and a heavy duty basket, the Argon Series optimises usability for operators. While in depth programming can be preset at the wall mounted generator.
Designed for manufacturing and processing industries, these high performance, large ultrasonic cleaning systems will deliver outstanding cleaning quality and increase productivity.
Please be aware that this particular model has a number of variants due to the different applications it can be suited for. It therefore has a reasonably wide level of configurability and its price can only be estimated prior to a site survey.
If you would like some more guidance we would love to help, just either talk to us through the chat-box on your screen or give us a call and we will be able to give you some quick and concise advice.
Additional information
| Weight | 630 kg |
|---|
Product Specifications
Overall Dimensions | 2120 x 1090 x 1070mm (W x D x H) |
Working Tank Dimensions | 1380 x 890 x 810mm |
Basket Dimensions | 1280 x 790 x 720mm |
Working Capacity | 1000 Litres |
Construction | Industrial Grade 2mm stainless steel 316L tank |
Control | Simple on/off switch with advanced control accessible at the wall mounted control box |
Operating Features | Fluid level protection |
Ultrasonic Power | 8000W |
Operating Frequency | 32 to 38kHz |
Heating Power | 14400W |
Mains Connections | 400-415V 3 Phase +N +E |
Warranty | 1 year standardOptions available for 3Year or 5year extended warranty as part of the Planned Preventative Maintenance Service (PPMS) |
Compare the ARGON-Series
Argon-Series comparison table
Compare the products from the Argon-Series range| Argon Series |  |  |  |
| Model | Argon 250 | Argon 500 | Argon 1000 |
| Overall Dimensions | 1455 x 800 x 885mm | 1700 x 1020 x 1000mm | 2120 x 1090 x 1070mm |
| Working Tank Dimensions | 830 x 600 x 520mm | 1035 x 820 x 590mm | 1380 x 890 x 810mm |
| Basket Dimensions | 730 x 500 x 430mm | 950 x 725 x 525mm | 1280 x 790 x 720mm |
| Working Capacity | 250 Litres | 500 Litres | 1000 Litres |
| Hinged Lid | Y | Y | Y |
| Heated | Up to 80°C | Up to 80°C | Up to 80°C |
| Timer | Up to 80 minute cycles and 7 day programmable | Up to 80 minute cycles and 7 day programmable | Up to 80 minute cycles and 7 day programmable |
| Fluid Level Protection | Y | Y | Y |
| Frequency Leap Technology | Y | Y | Y |
| Multi-Stage Capability | Y | Y | Y |
| Recirculation and Filtration | Y | Y | Y |
