Description

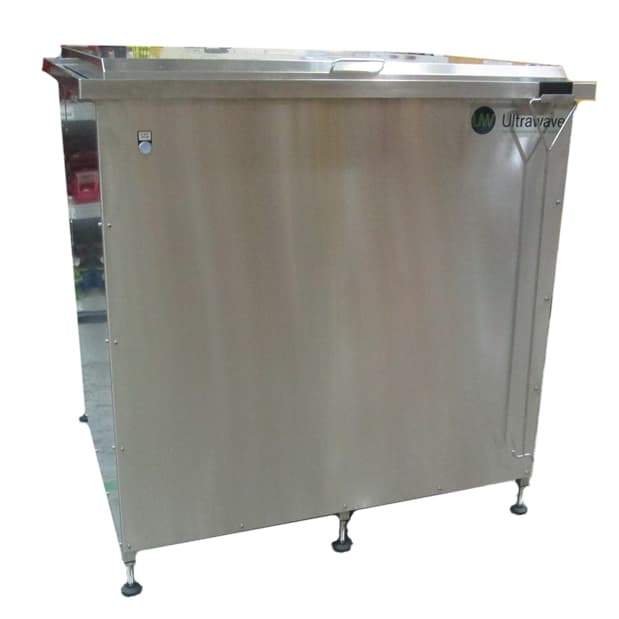

The HDX720 was originally designed and manufactured for one of the world’s largest manufacturer of construction/mining machinery for critical cleaning of heavy duty bearing assemblies.

Incorporating a sophisticated recirculation system that comprises of a jetting system, over-flow weir, stainless steel pump and twin filtration, the HDX720 greatly enhance the cleaning performance and reduce the regularity at which the fluid needs to be changed. Improved cleaning results are delivered with lower running costs.

The HDX720 is fitted with Ultrawave’s hard chrome plated Submersible transducers, allowing easy and flexible maintenance of the system.

See also our Argon Series Ultrasonic Cleaning Systems for cleaning and processing large and/or high quantity of components.

Additional information

Weight 350000 kg

Product Specifications

Overall Dimensions
1290 x 1635 x 1255mm (W x D x H)
Tank Dimensions
900 x 690 x 870mm
Tank Capacity
720 Litres
Construction
2mm thick 304 stainless steel tank
Control
Digital control
Temperature (Ambient to 80°)
Time (0 to 99 minutes)
Operating Features
External wall mounted generator with programmable control software
Fluid level protection
Frequency Leap Technology
Hard chrome plated Submersible Transducers (Line Replacement Units)
Lockable drain valve
Overflow-weir system
Twin pump and filtration system
Ultrasonic Power
6000W RMS
12000W Peak to Peak
Operating Frequency
30 to 40kHz
Heating Power
9000W
Mains Connection
400-415V 3 Phase +N +E
Warranty
1 year
