Description

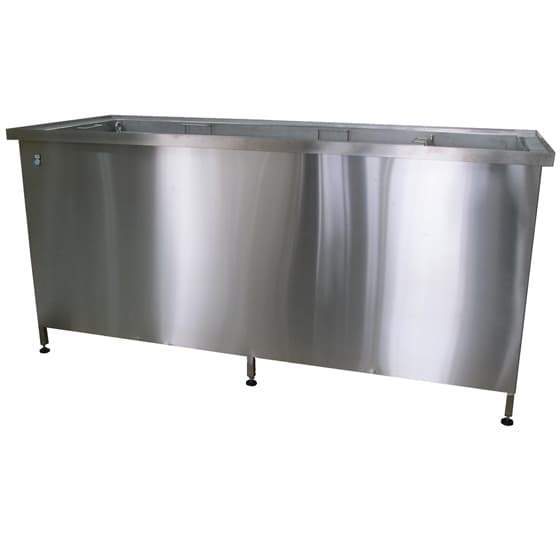

The HDX665 was originally designed and manufactured for one of the world’s largest advanced aerospace and defence suppliers for the cleaning and degreasing of precision aluminium, mild and stainless steel tubes. This 665Litre precision ultrasonic cleaning system has reduced the customer’s cleaning time by over 40%.

Incorporating a sophisticated recirculation system that comprises of a jetting system, over-flow weir, stainless steel pump and twin filtration, the HDX665 greatly enhance the cleaning performance and reduce the regularity at which the fluid needs to be changed. Improved cleaning results are delivered with lower running costs.

The HDX665 is fitted with Ultrawave’s hard chrome plated Submersible transducers, allowing easy and flexible maintenance of the system.

Ultrawave provides a range of adaptable options for the HDX665, to suit your specific requirements. This includes:
  • Irrigation System
  • Heated rinse tank
  • Hot air re-circulation dryers
  • De-I Station… and many more



See also our Argon Series Ultrasonic Cleaning Systems for cleaning and processing large and/or high quantity of components.





Additional information

Weight 300 kg

Product Specifications

Overall Dimensions
2335 x 1110 x 1165mm (W x D x H)
Working Tank Dimensions
1800 x 700 x 500mm (W x D x H)
Internal Basket Dimensions
1698 x 600 x 465mm (W x D x H)
Working Capacity
665 Litres
Construction
2mm thick 304 stainless steel tank
Control
Digital control
Temperature (Ambient to 80°)
Time (0 to 99 minutes)
Operating Features
External wall mounted generator with programmable control software
Fluid level protection
Frequency Leap Technology
Hard chrome plated Submersible Transducers (Line Replacement Units)
Lockable drain valve
Overflow-weir system
Twin pump and filtration system
Ultrasonic Power
6000W RMS
12000W Peak to Peak
Operating Frequency
30 to 40kHz
Heating Power
9000W
Mains Connection
400 to 415V 3 Phase +N +E
Warranty
1 year
