Description

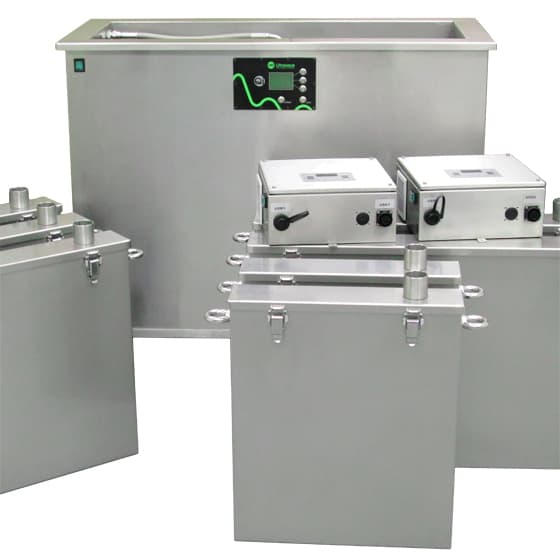

Designed for cleaning stainless steel components and filters, the DX120DSG was manufactured to meet the specific requirements for specialised water processing applications of a global leader in ion exchange resins.

The DX120DSG is supplied with sealed canisters specifically for solvents. These small canisters reduce the volume of solvent required, providing environmental and cost saving benefits.

The digital LCD control provides accurate programming, with a secondary safety-back up thermostat to shut down the ultrasonics at 35°C.

This increased process control together with the supplied canisters tailored the system to a specific customer’s requirements.



Additional information

Weight 200 kg

Product Specifications

Overall Dimensions
1235 x 525 x 830mm (W x D x H)
Overall Tank Dimensions
1235 x 525 x 955mm
Capacity
120 Litres
Construction
2mm thick 304 stainless steel tank
Control
Digital control
Time (0 to 99 minutes)
Operating Features
Adjustable ultrasonic power
Fluid level protection
Frequency Leap Technology
Hard chrome plated Submersible Transducers (Line Replacement Units)
Lockable drain valve
Remote generator cabinets with programmable control software
Sealed solvent canisters
Thermostatic cut out at 35°
Ultrasonic Power
3000W Peak to Peak
6000W RMS
Operating Frequency
30 to 40kHz
Heating Power
None – Not applicable
Mains Connection
230Vac
Warranty
1 year
