Submersible Transducers and SMART Generators

Description

Apply ultrasonic technology to your existing process for faster and more effective cleaning

Talk to us today for your customised ultrasonic solution!

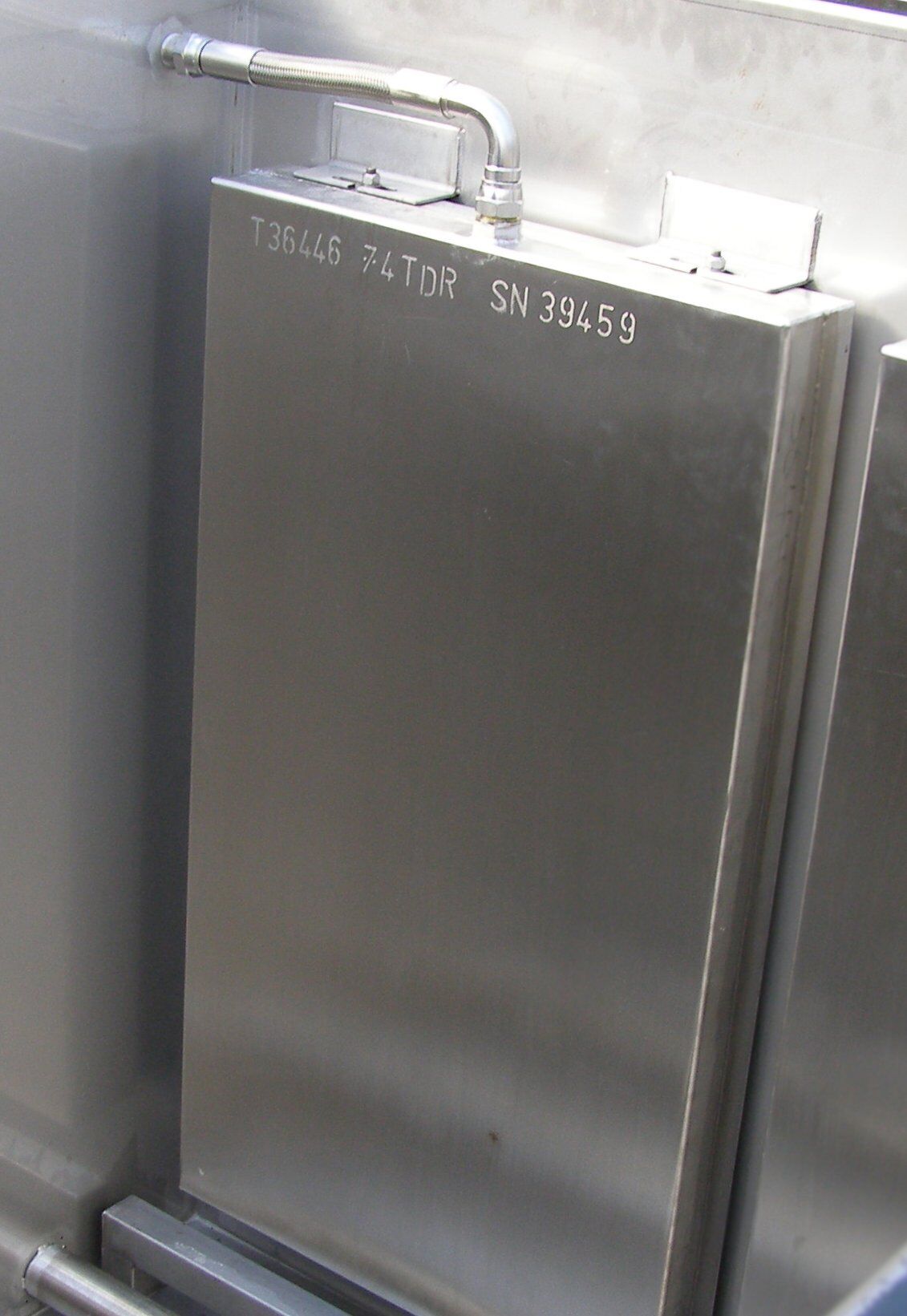

Our Submersible Transducers, sometimes also referred to as an Immersible Transducer are a cost effective and flexible way to retro-fit or renew ultrasonic technology into your existing process.

Cost Effective, Environmental Benefits

Our Submersible Transducers have been fitted to replace existing solvent and spray tanks/systems with ultrasonic technology to deliver high performance cleaning results at a fraction of the price of a new system. By re-using your existing tank, costs are lowered and waste of metal work is eliminated.

High Cleaning Performance

Each Submersible Transducer is powered by a SMART Generator, matched and tuned in synchronisation to deliver the optimum ultrasonic performance for your application. The quantity and power of Submersible transducers required will depend on the size of your existing tank.

Robust and Durable

All our Submersible Transducers are hard chrome plated, minimising wear on the radiating surface and maximising longevity.

Advanced Control Options

Ultrawave Submersible Transducers are powered by our SMART Generators, offering a selection of optional features to suit your process requirements.

Easy fitting and flexible maintenance

Fitting submersible transducers to your existing tank is an easy and straightforward process. Our trained technicians will visit your site and further training on the operation of your new system can be provided upon request. The ease of fitting and removal of your submersible transducers and generators also means that future service and maintenance is flexible, minimising disruption to your production line.

Minimum Submersible Transducers Dimensions
150 x 150 x 70mm (W x D x H)
Construction
Hard chrome plated surface finish
Stainless steel
Ultrawave ultrasonic transducers
Control
Digital
External PLC (Programmable Logic Controller)
Optional Control Functions
Variable power output
Frequency Leap Technology
Feedback monitoring
Degas mode
Ultrasonic Power
Minimum power per Submersible Transducer is 500W
Power required will depend on the size and capacity of your existing tank/system
Operating Frequency
30-40kHz
Mounting Options

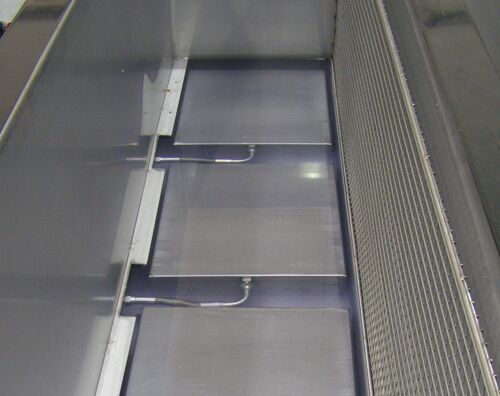

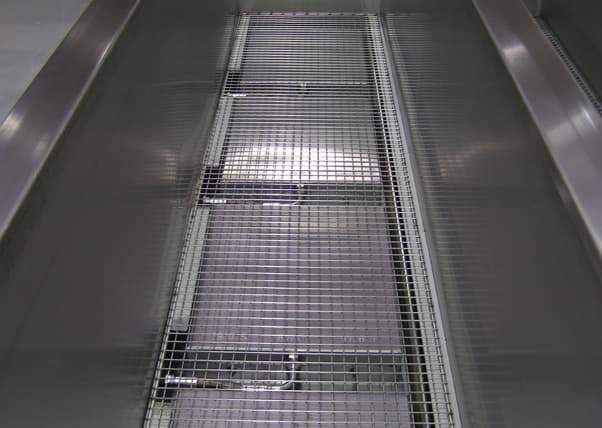

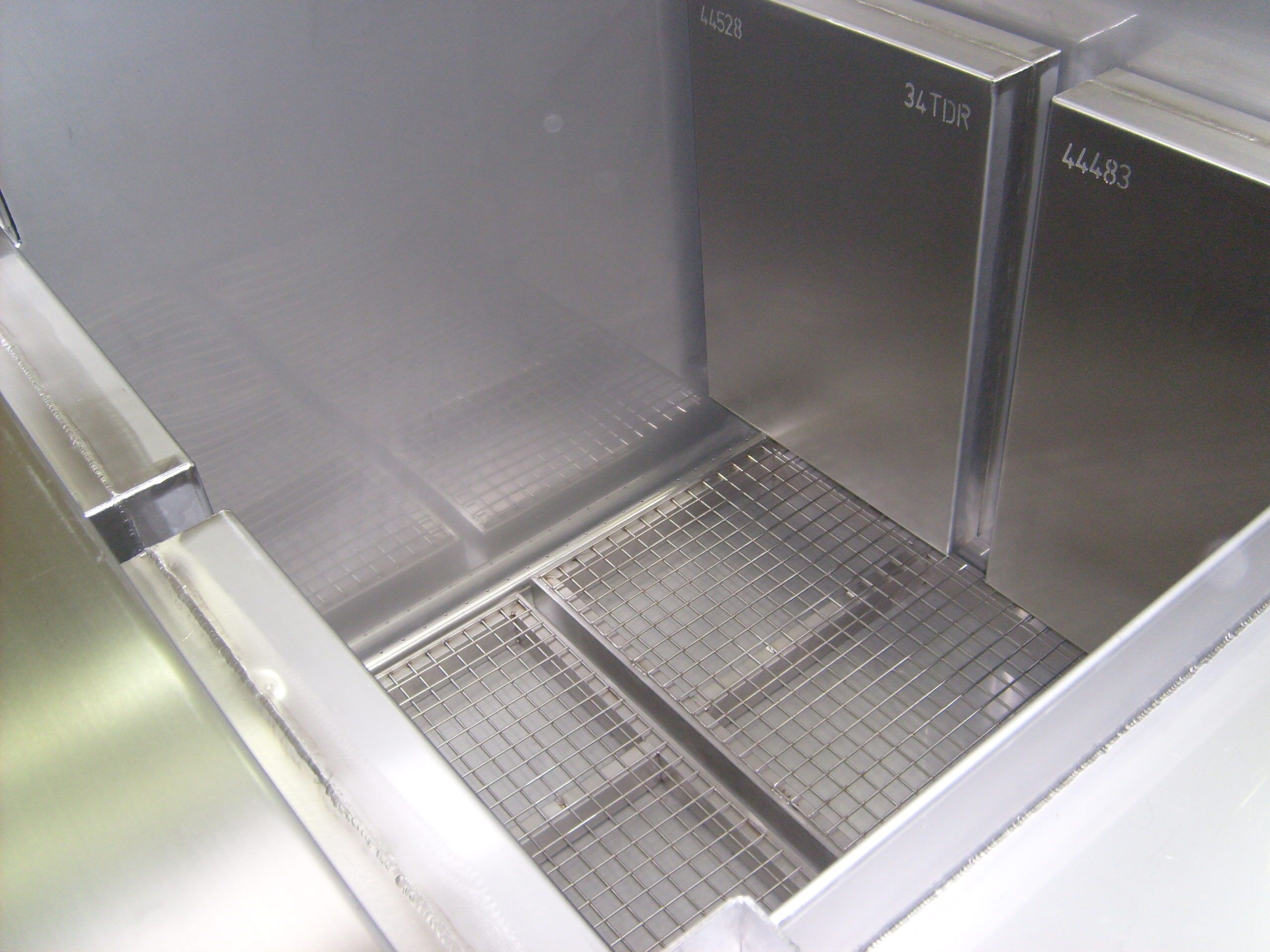

Bottom or side mounted
Dependent on shape and size of your existing tank/system
Warranty
3 year warranty
Ultrawave SMART Generator Description

The Ultrawave SMART Generator is a digitally controlled power source, used to send power to Ultrawave transducers The technically advanced SMART Generators have an easy to use digital control panel. This allows accurate process control to ensure optimum cleaning efficiency for your ultrasonic cleaning system.

Incorporating Ultrawave’s advanced software, Frequency Leap technology creates a pseudo-random leaping action between a wider frequency range for your submersible transducers. This reduces the standing wave in your ultrasonic cleaning system to give improved cleaning performance time after time.

SMART Generators Submersible Transducers & Generator features and options

Control
Digital
External PLC (Programmable Logic Controller)
Power
500W to 3000W
Construction
304L Stainless Steel
316 Stainless Steel
Hard Chrome Plating
Frequency
30-40kHz
Features
Variable Power Output
Degas
Frequency Leap
Feedback Monitoring
Generator
Free Standing
Wall Mount
