The First Ultrasonic Bath with Wireless Connectivity!

“Designed for efficient cleaning and improved productivity”

Ultrawave’s hygea d3ntal Ultrasonic Bath offers outstanding performance for use in dental applications. Compliant to HTM01-05 and ISO standards, to provide reassurance for any professional use.

Additionally the hygea d3ntal is a Class I Medical Devices, compliant to MDR (EU) 2017/745.

The unit incorporates Ultrawave’s Frequency Leap Technology, homogenous cavitation activity is generated throughout the ultrasonic bath reducing dead spots and standing waves. This provides a more consistent scrubbing action for excellent results.

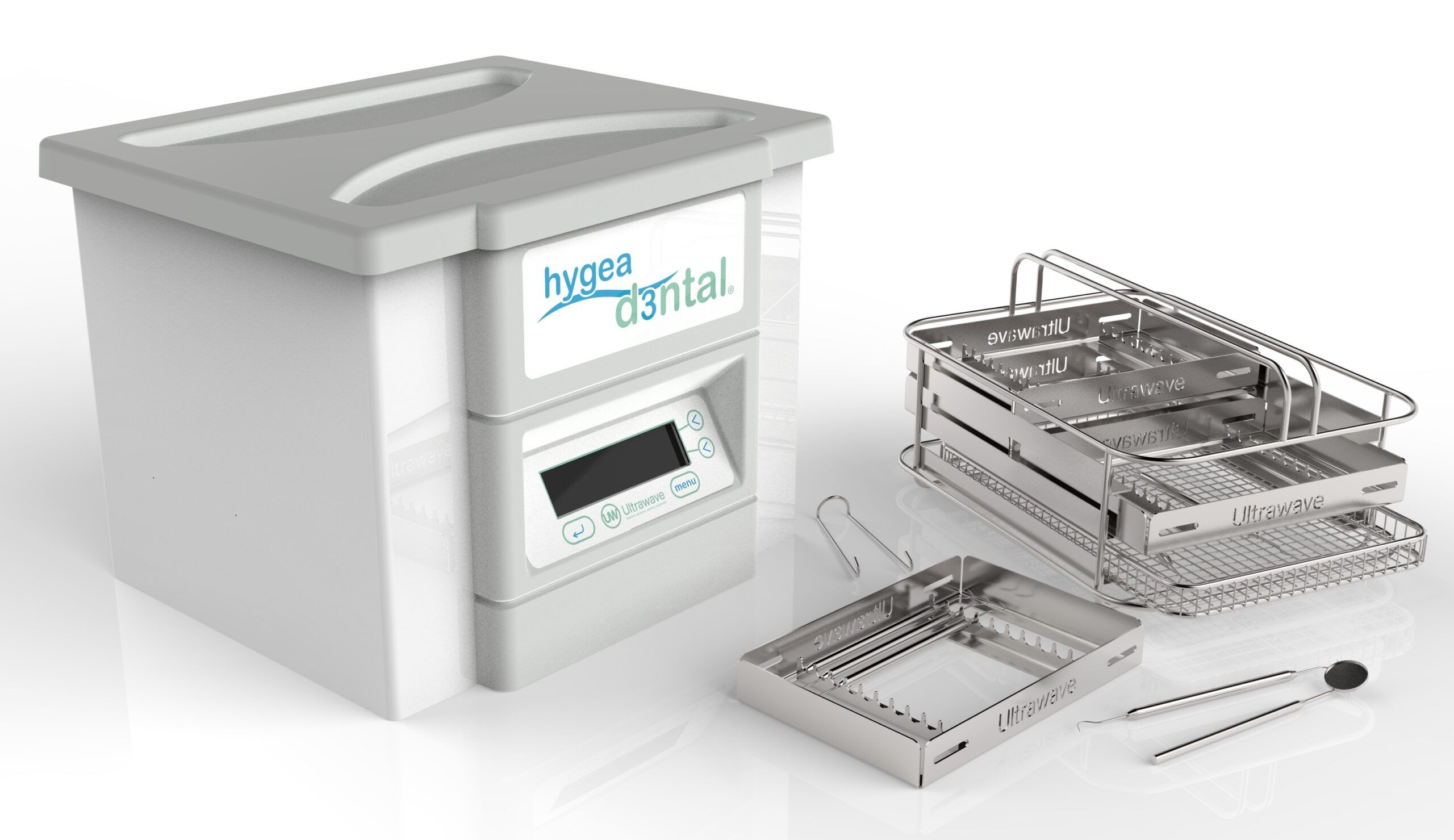

The hygea d3ntal will revolutionise the way you work. The unique three tier basket system allows up to 60 instruments to be cleaned in one rapid cycle. Independent testing has shown that even the most heavily contaminated instruments are clean and free of proteins after a 6 minute cycle.

The hygea d3ntal has a 10 Litre heated, digitally controlled ultrasonic bath.

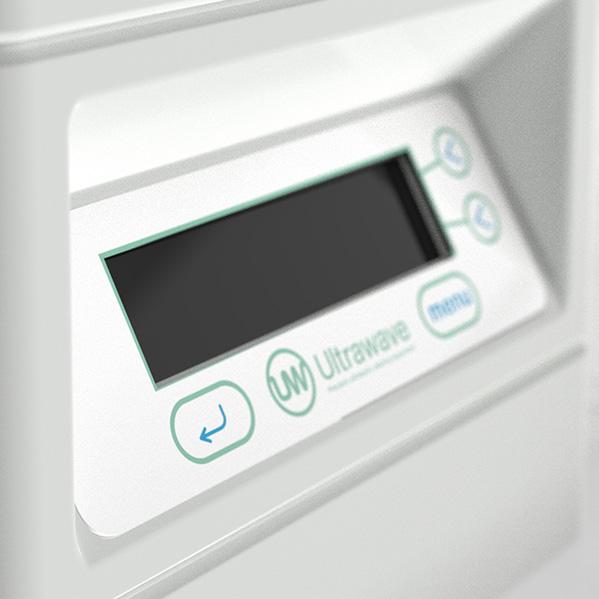

The menu driven control panel allows simple adjustment of cycle time (0 to 99 minutes), temperature (ambient to 40°C), ultrasonic power and frequency adjustment for precise and accurate processing.

Combining features such as degas mode, fluid level sensor and wireless connectivity, the hygea d3ntal offers repeatable and traceable cleaning performance with consistent cleaning results every time.

For optimum cleaning performance, select Ultrawave’s Sonozyme 3 – advanced PH Neutral tri-enzymatic detergent for cleaning and pre-disinfection of surgical instruments and medical devices.

Additional information

Weight 11 kg



User Manual


Product Specification


Overall Dimensions
345 x 285 x 265mm (W x D x H)

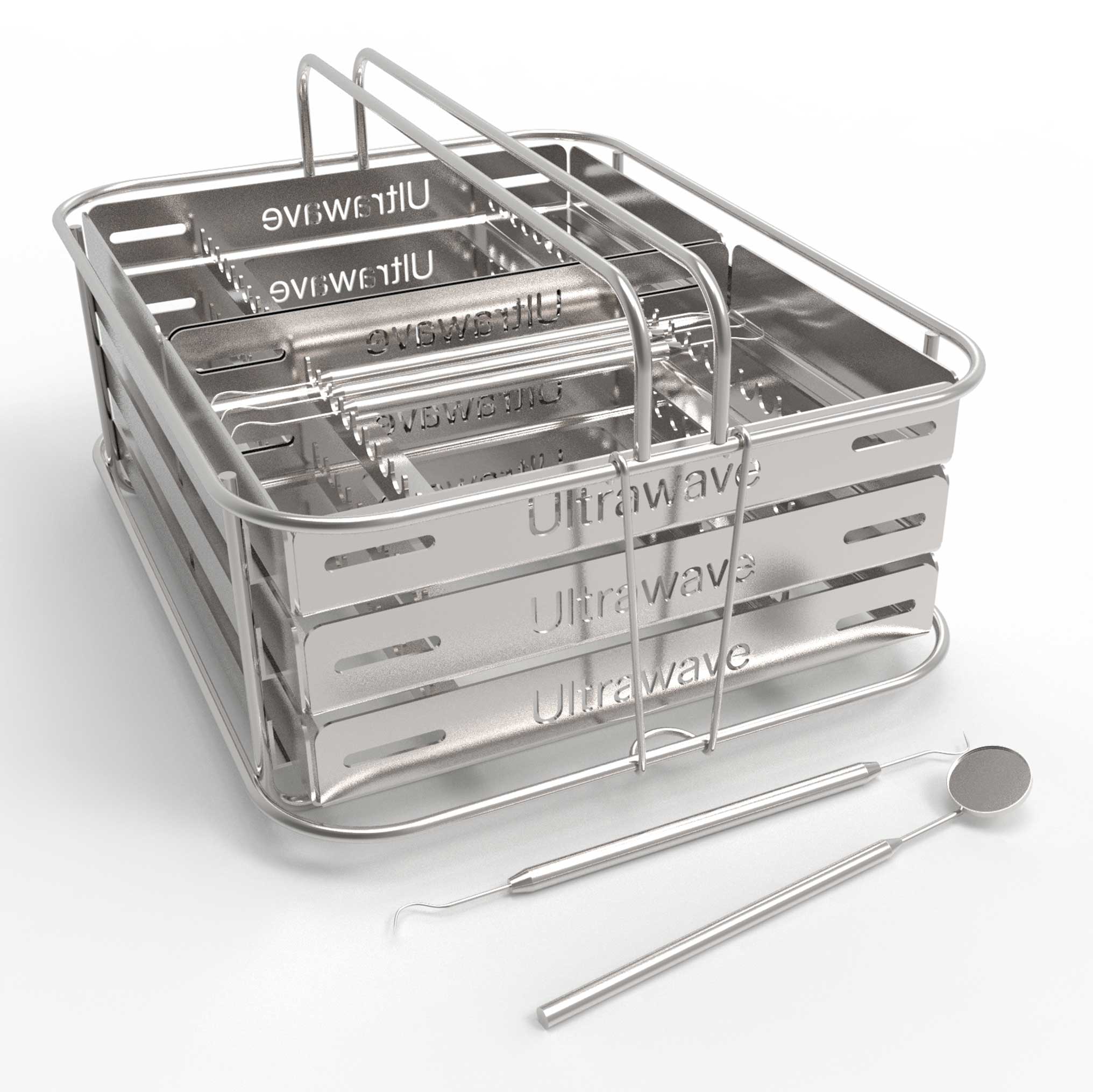

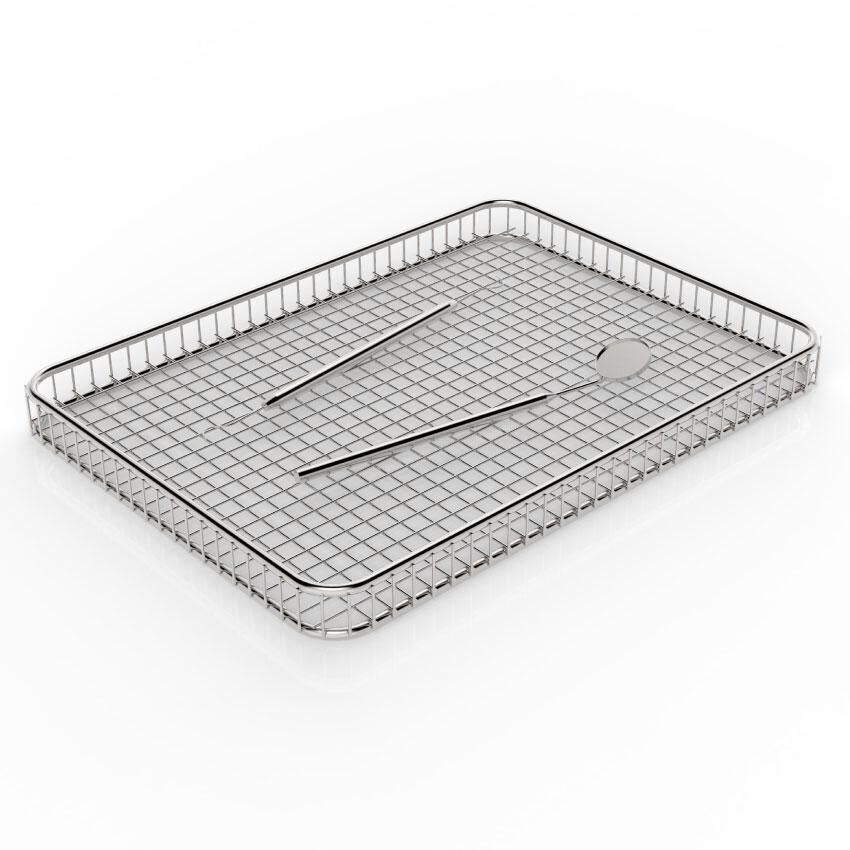

Loading Basket

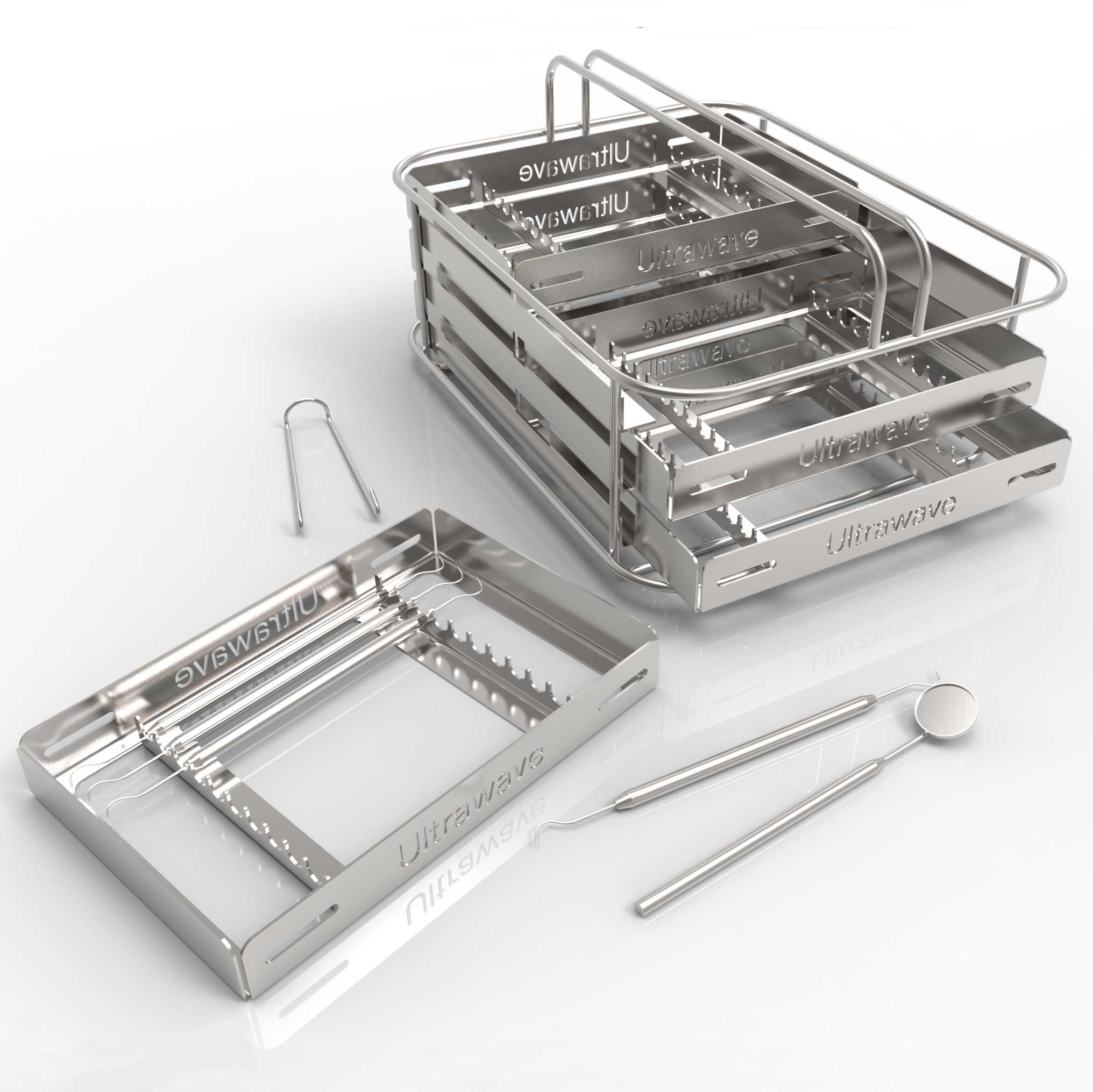

Basket Carrier with Cassettes
Basket Dimensions
265 x 205 x 140mm (W x D x H)
Up to 60 standard instruments + 8 litres of working fluid capacity
304 stainless steel tank

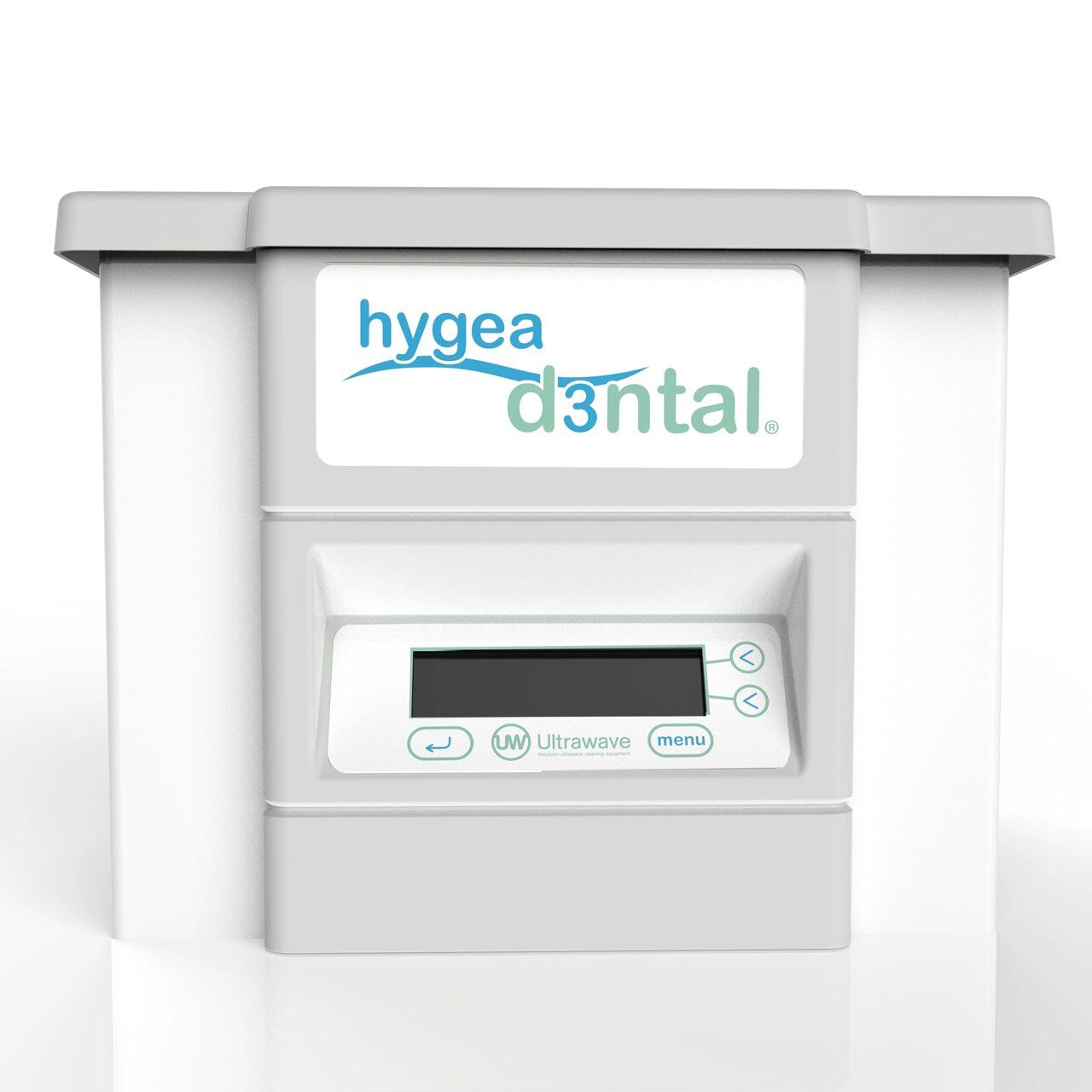

Menu driven LCD control panel
Temperature (Ambient to 50°C)
Time (0 to 99 minutes)
Up to 60 instruments in one 6 minute cycle
Operating Features
Basket carrier compatible with variety of baskets and cassettes
Dual cycle traceability
Frequency Leap Technology
Process Monitor of Lid
Thermal over-temperature cut-off prevents the risk of protein coagulation
Water change reminder
Wireless connectivity
Compliance and approvals
HTM 01-05
Mains Connection
1 Year as standard – extend to 3 Years if registered online with us (within 30days of purchase)


Download the validation software for the hygea d3ntal:
